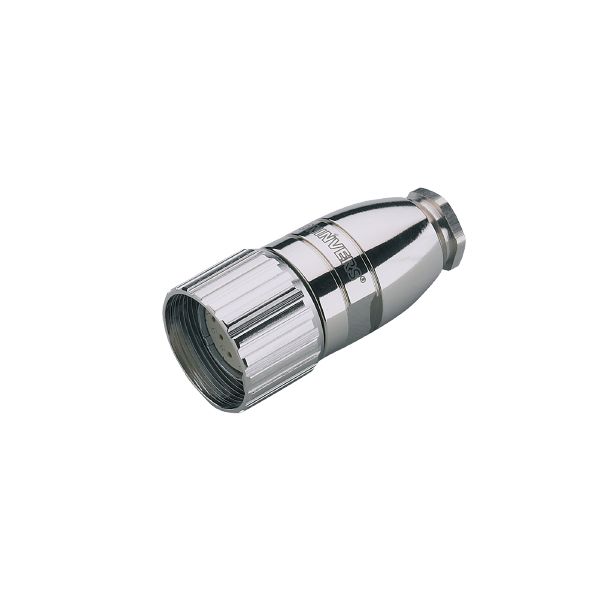

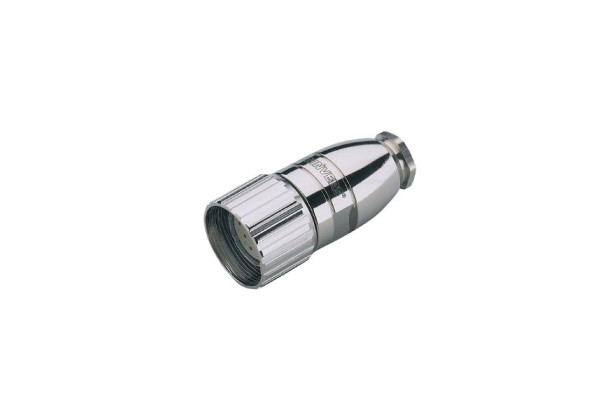

E60136 - ecomat400-SDOGK120MKRFKSG
Brand: IFM Electronic
Code: E60136
- For incremental encoders with 12-pole M23 connector
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection due to soldering
- Robust metal version
Electrical data
| Operating voltage [V] | 4.5...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...125 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 79 |
|---|---|
| Dimensions [mm] | 25 x 25 x 45 |
| Materials | brass nickel-plated |
| Moulded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| soldering:...1 mm²; Cable sheath: Ø 4.5...6 mm |
Electrical connection - socket
| Connection | Connector: 1 x M23, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60136-00 — 06.06.2011 —
