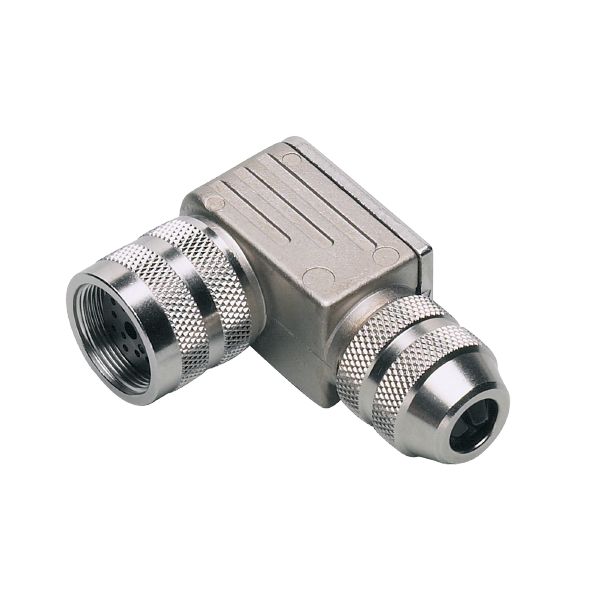

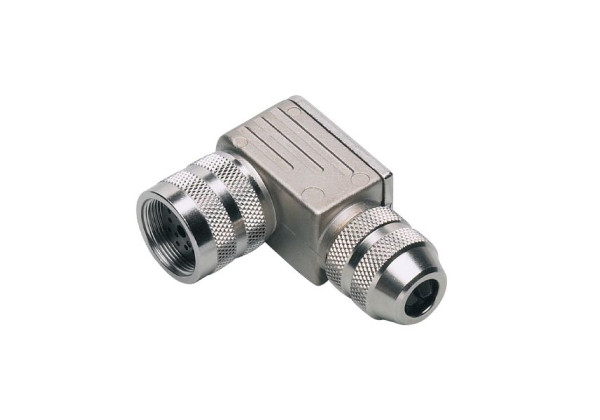

E60175 - ecomat400-SDOAJ120MSLFKPG
Brand: IFM Electronic
Code: E60175
- Angled type for use where space is restricted
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- For incremental encoders with 12-pole M18 connector
Electrical data
| Operating voltage [V] | 4.5...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 69.4 |
|---|---|
| Dimensions [mm] | 37 x 20 x 53 |
| Materials | brass nickel-plated |
| Moulded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| soldering:...0.25 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x M18, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60175-00 — 06.06.2011 —
