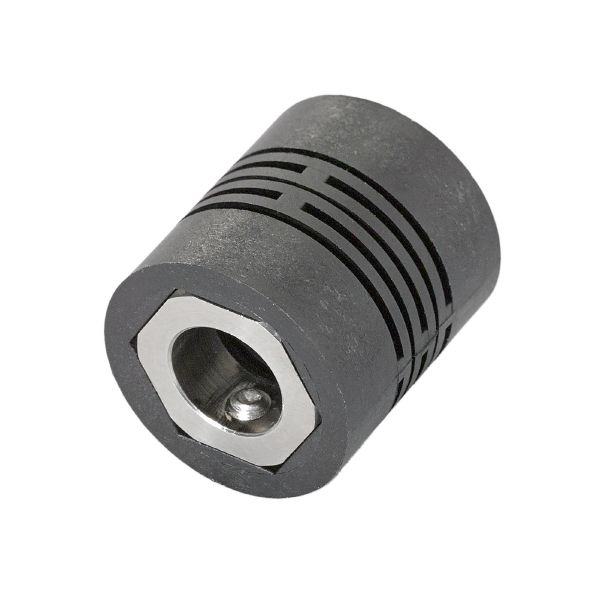

E60193 - efector400-Coupling 25-10-10-24-SV
Brand: IFM Electronic
Code: E60193
- Clearance-free transmission of rotary movements
- Efficient vibration damping
- Excellent compensation of alignment errors
- Low rigidity of the torsion spring
- Small restoring forces
Mechanical data
| Weight [g] | 18.6 |
|---|---|
| Dimensions [mm] | Ø 22 / L = 24 |
| Materials | PA 6.6; stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | tightening torque screws: 120 Ncm |
| External diameter D [mm] | 22 |
| Inside diameter 1 [mm] | 10 |
| Inside diameter 2 [mm] | 10 |
| Depth of the clamping hub [mm] | 6.4 |
| Clamping screw [mm] | M4 x 6 - ISO 4029 (2x) |
| Length [mm] | 24 |
| Max. revolution, mechanical [U/min] | 10000 |
| Max. axial shaft misalignment [mm] | ± 0,2 |
| Max. radial shaft misalignment [mm] | ± 0,3 |
| Max. angular displacement [°] | ± 3,0 |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60193-00 — 23.01.2023 —
