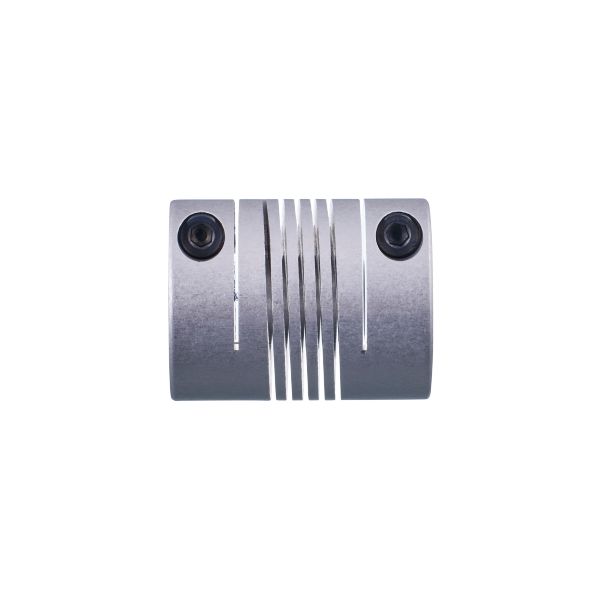

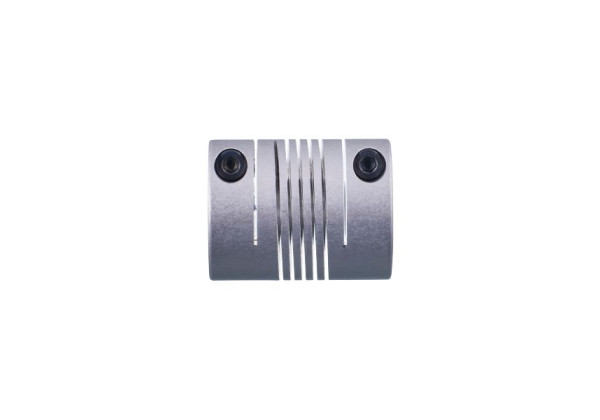

E60209 - COUPLING 25-95-10-32-KV

Code: E60209

Clearance-free transmission of rotary movements
Efficient vibration damping
Excellent compensation of alignment errors
Low rigidity of the torsion spring
Small restoring forces

Mechanical data

Weight [g]	33.4
Dimensions [mm]	Ø 25 / L = 32
Materials	aluminium
Tightening torque [Nm]	tightening torque screws: 120 Ncm
External diameter D [mm]	25
Inside diameter 1 [mm]	10
Inside diameter 2 [mm]	9,525 mm / 3/8" / 3/8 inch
Depth of the clamping hub [mm]	8
Clamping screw [mm]	M4 x 12 - ISO 4762 (2x)
Length [mm]	32
Max. revolution, mechanical [U/min]	6000
Max. axial shaft misalignment [mm]	± 0,5
Max. radial shaft misalignment [mm]	± 0,35
Max. angular displacement [°]	± 4,0

Remarks

The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.

The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.

Pack quantity

1 pcs.
