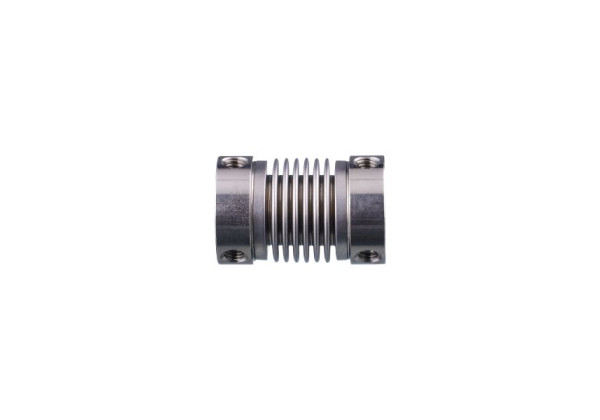

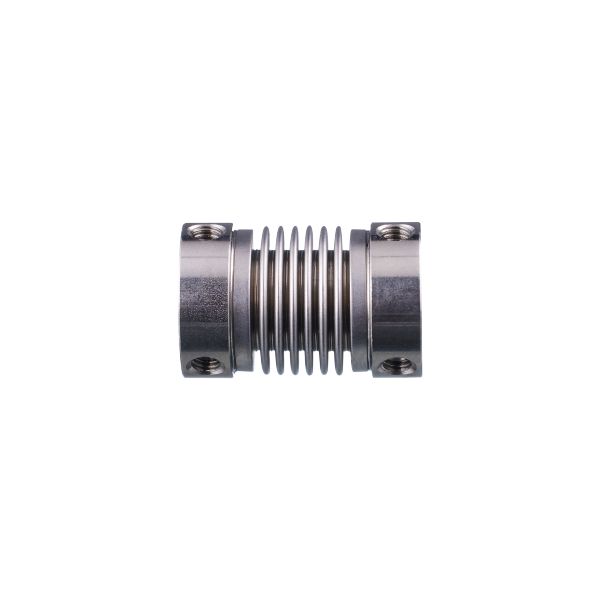

E60216 - COUPLING V4A

Code: E60216

Clearance-free transmission of rotary movements
Efficient vibration damping
Excellent compensation of alignment errors
Low rigidity of the torsion spring
Small restoring forces

Mechanical data

Weight [g]	33
Dimensions [mm]	Ø 20 / L = 29
Materials	flange: 1.4404 (V4A/316L); Bellow: 1.4571 (V4A/316Ti)
Tightening torque [Nm]	tightening torque screws: 150 Ncm
External diameter D [mm]	20
Inside diameter 1 [mm]	10
Inside diameter 2 [mm]	10
Depth of the clamping hub [mm]	6.4
Clamping screw [mm]	M4 x 4 - ISO 4029 (4x)
Length [mm]	29
Max. revolution, mechanical [U/min]	10000
Max. axial shaft misalignment [mm]	± 0,4
Max. radial shaft misalignment [mm]	± 0,25
Max. angular displacement [°]	± 4,0

Remarks

The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.

The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.

Pack quantity

1 pcs.
