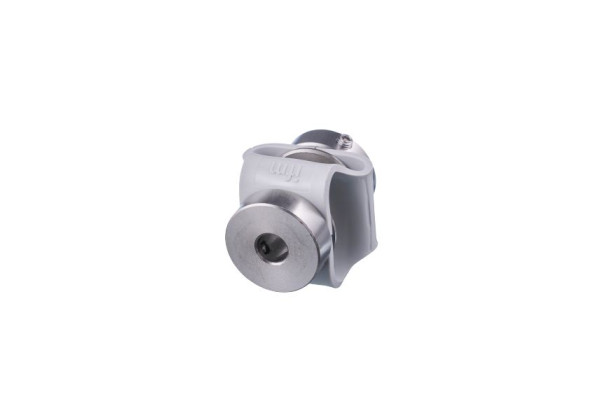

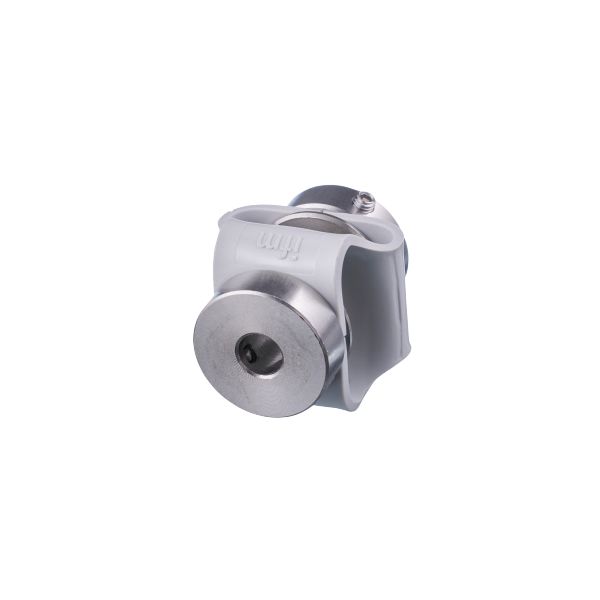

E61436 double-loop coupling DL COUPLING V2A 29-6-10-29-SV

Code: E61436

Operating conditions

Ambient temperature [°C]	-30...80

Mechanical data

Weight [g]	31.1
Materials	shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU
Tightening torque [Nm]	tightening torque screws: 100 Ncm
External diameter D [mm]	29
Inside diameter 1 [mm]	6
Inside diameter 2 [mm]	10
Depth of the clamping hub [mm]	9
Clamping screw [mm]	M3 x 4 - ISO 4029 A2 (4x)
Length [mm]	29
Max. revolution, mechanical [U/min]	3000
Max. axial shaft misalignment [mm]	± 2
Max. radial shaft misalignment [mm]	± 2
Max. angular displacement [°]	± 10
Rigidity of the torsion spring [Nm/rad]	13

Remarks

The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.

The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.

Pack quantity

1 pcs.
