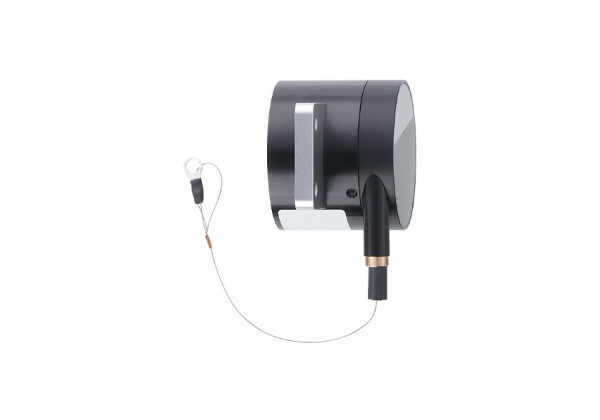

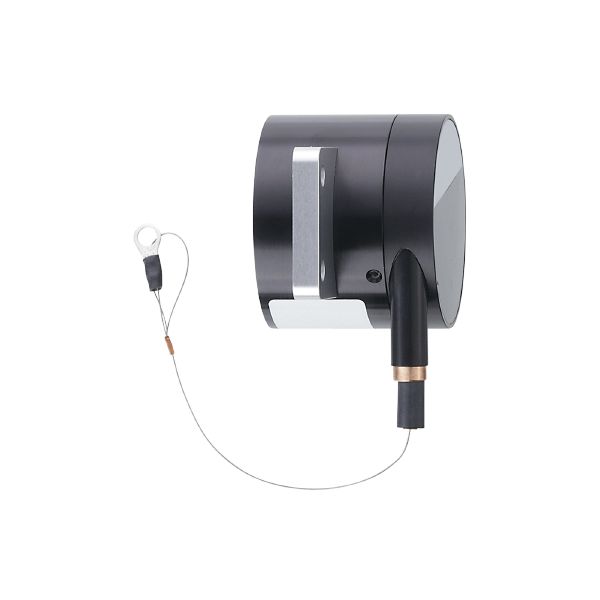

E61439 draw-wire mechanism for encoders DRAW WIRE 1900
Brand: IFM Electronic
Code: E61439
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter [mm] | 6 |
Application
| Design | for encoders with 58 mm synchro flange and 6 mm solid shaft |
|---|
Accuracy / deviations
| Accuracy | ± 0.02 % FSO |
|---|---|
| Repeatability | ± 0,006 % FSO |
Operating conditions
| Ambient temperature [°C] | -20...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Storage humidity [%] | 5...95; (non condensing) |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 598.5 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top flange diameter [mm] | 58 | ||||||||||||
| Materials | housing: aluminium; wire: stainless steel polyamide coated | ||||||||||||
| Shaft design | solid shaft | ||||||||||||
| Shaft diameter [mm] | 6 | ||||||||||||
| Max. measuring length [mm] | 1900 | ||||||||||||
| Wire drum circumference [mm] | 150 | ||||||||||||
| Wire diameter [mm] | 0.45 | ||||||||||||
| Wire connection | 5,5; (eyelet) | ||||||||||||
| Wire properties |
| ||||||||||||
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation instruction | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61439-00 — 01.03.2021 —
