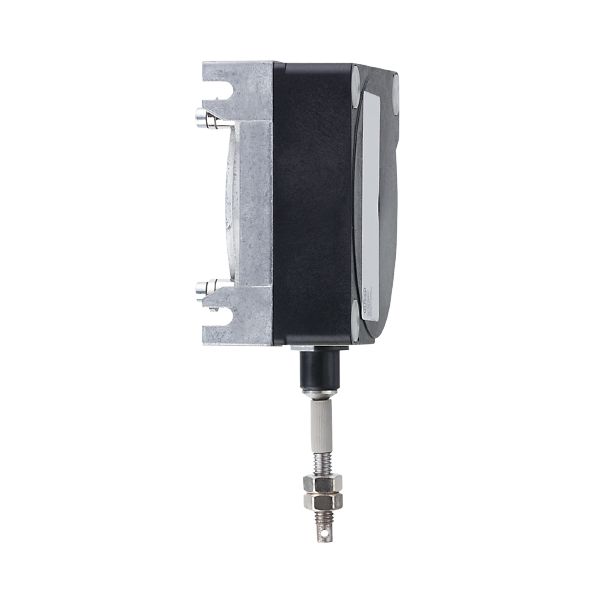

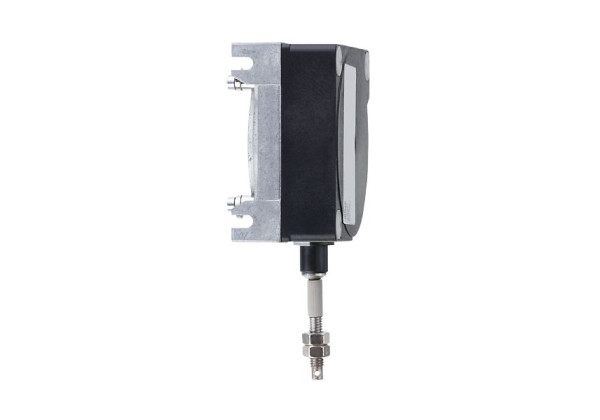

E61441 draw-wire mechanism for encoders DRAW WIRE 3000
Brand: IFM Electronic
Code: E61441
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter [mm] | 6 |
Application
| Design | for encoders with 58 mm synchro flange and 6 mm solid shaft |
|---|
Accuracy / deviations
| Accuracy | ± 0.012 % FSO |
|---|---|
| Repeatability | ± 0,005 % FSO |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Storage temperature [°C] | -40...80 |
| Storage humidity [%] | 5...95; (non condensing) |
Mechanical data
| Weight [g] | 598.5 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top flange diameter [mm] | 58 | ||||||||||||
| Materials | housing: diecast zinc / plastic; wire: stainless steel polyamide coated | ||||||||||||
| Shaft design | solid shaft | ||||||||||||
| Shaft diameter [mm] | 6 | ||||||||||||
| Max. measuring length [mm] | 3000 | ||||||||||||
| Wire drum circumference [mm] | 200 | ||||||||||||
| Wire diameter [mm] | 0.87 | ||||||||||||
| Wire connection | M6 | ||||||||||||
| Wire properties |
| ||||||||||||
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation instruction | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61441-00 — 01.03.2021 —
