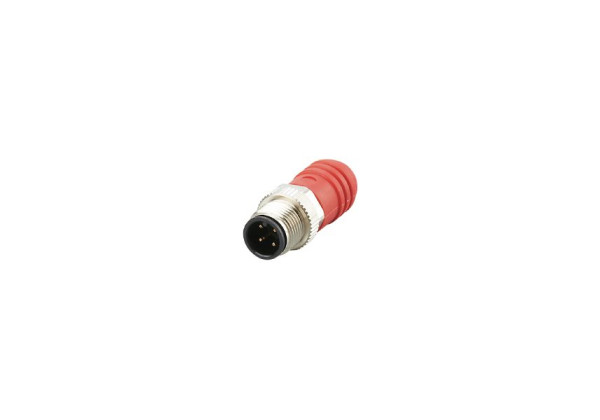

E7008S - Short-circuit plug f.AC509S
Brand: IFM Electronic
Code: E7008S
- For use in combination with AS-Interface safety modules
- For simulating a short circuit
- High protection rating for the requirements of harsh industrial environments
- Easy connection via the tried-and-tested M12 connector
- Wide operating temperature range
Application
| Application | bridging plug for safe input module |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 11.3 |
|---|---|
| Dimensions [mm] | 15 x 15 x 37 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Moulded body: PUR; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E7008S-00 — 09.02.2017 —
