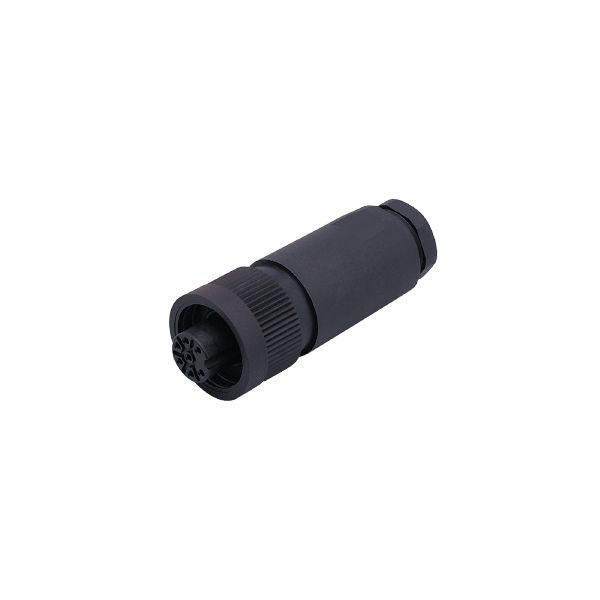

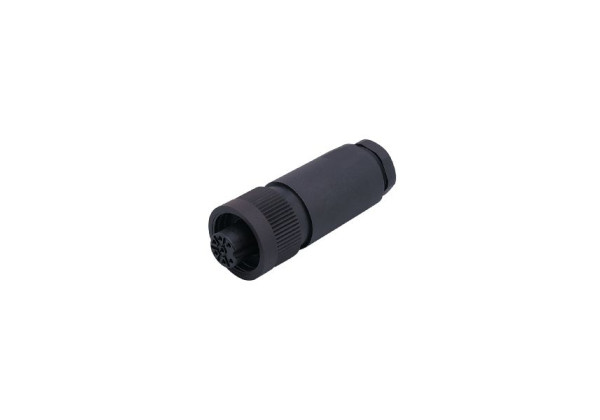

E70142 - ecomat400-SDOGL070PLSFKPG
Brand: IFM Electronic
Code: E70142
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 49.4 |
|---|---|
| Dimensions [mm] | 29 x 29 x 71 |
| Materials | PBT |
| Moulded-body material | PBT |
| Material nut | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals:...2.5 mm²; Cable sheath: Ø 10...12 mm |
Electrical connection - socket
| Connection | Connector: 1 x Rd24, straight; coding: A; Moulded body: PBT; Locking: PBT; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70142-00 — 06.03.2003 —
