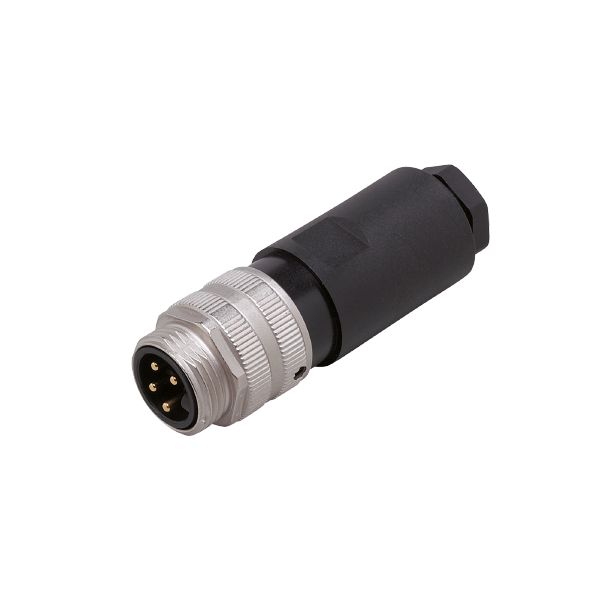

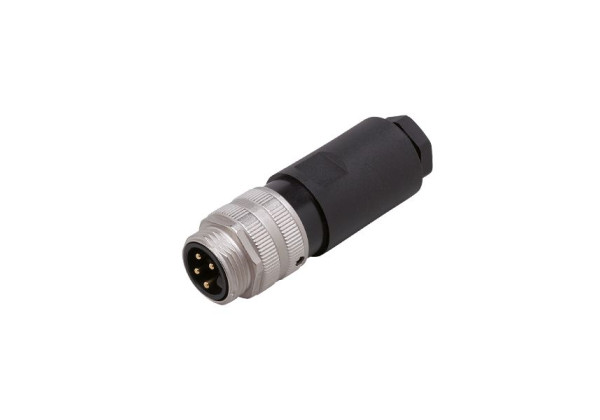

E70176 - ecomat400-SSTGB040MSSFKPG
Brand: IFM Electronic
Code: E70176
- For safe electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|---|
| Max. current load total [A] | 9 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 49.3 |
|---|---|
| Dimensions [mm] | 27 x 27 x 86 |
| Moulded-body material | PBT |
| Material nut | diecast zinc |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals:...1.5 mm²; Cable sheath: Ø 8...10 mm |
Electrical connection - plug
| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc |
|---|
