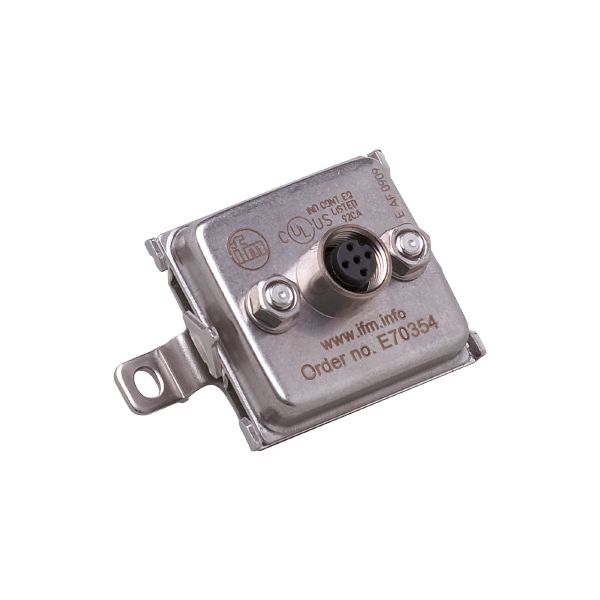

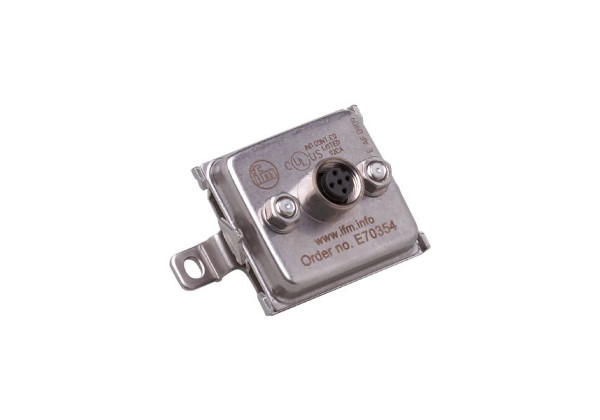

E70354 - ecomat300-FCE Splitter ye/bk ProcessL
Brand: IFM Electronic
Code: E70354
- for the transition of AS-i / AUX flat cable to M12 connector
- Hygienic design for the requirements of the food and beverage industry
- Easy and quick connection due to insulation displacement technology
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Large operating temperature range and high protection rating
Application
| Design | AS-i / 24 V |
|---|
Electrical data
| Protection class | III |
|---|---|
| Max. current load total [A] | 4; (AS-i: 2 A; AUX: 2 A) |
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 112.3 |
|---|---|
| Materials | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Tightening torque [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connection | Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70354-01 — 04.04.2022 —
