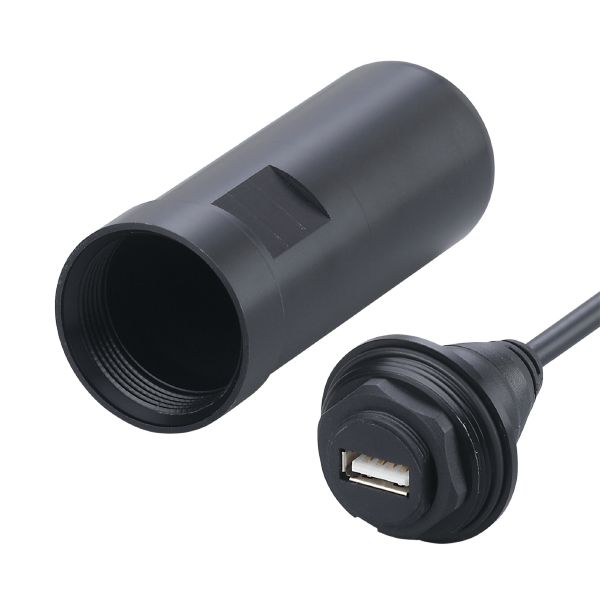

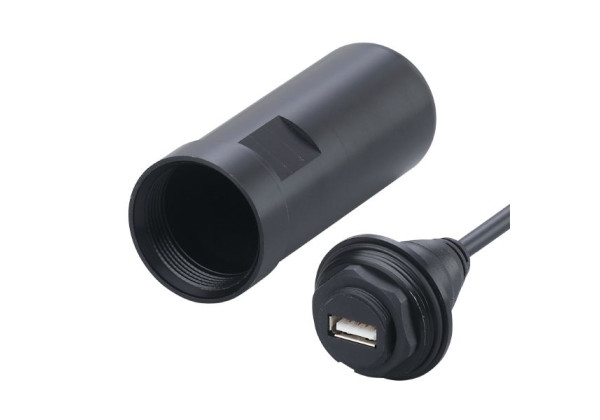

E70452 Protective cap Edge-Gateway/USB case
Brand: IFM Electronic
Code: E70452
Application
| Design | for USB connection cable EC2099 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|
Mechanical data
| Weight [g] | 42.6 |
|---|---|
| Dimensions [mm] | 94 x 13.5 x 13.5 |
| Thread designation | M22 x 1 |
| External diameter [mm] | 37 |
| Materials | POM; FKM |
| Tightening torque [Nm] | 0.8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70452-00 — 23.06.2020 —
