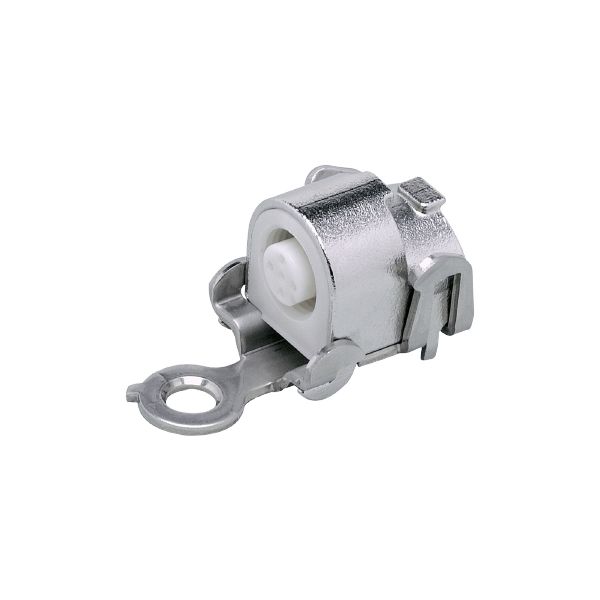

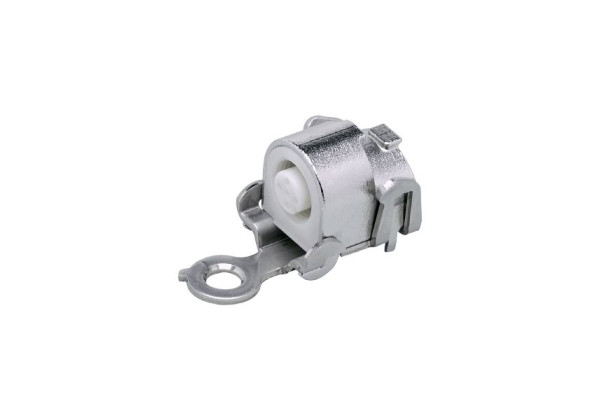

E70455 AS-Interface flat cable insulation displacement connector FC Splitter ye ProcessL
Brand: IFM Electronic
Code: E70455
Application
| Design | AS-i |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|
Outputs
| Max. current load outputs total [A] | 2 |
|---|
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 47 |
|---|---|
| Materials | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70455-00 — 21.07.2022 —
