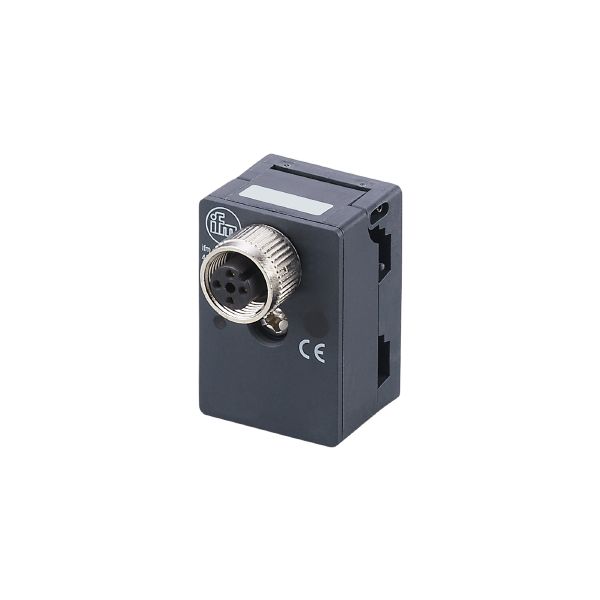

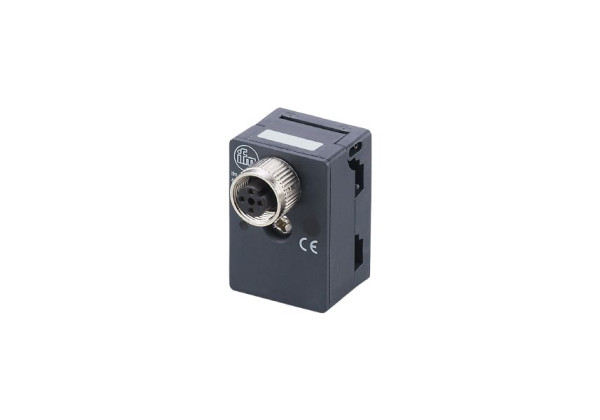

E70587 - FC Splitter AS-i / AUX M12 UL
Brand: IFM Electronic
Code: E70587
Electrical data
| Protection class | III |
|---|---|
| Max. current load per module/slot [A] | 4 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | -25...75 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 60.5 |
|---|---|
| Materials | housing: PBT / PC; screw: stainless steel (1.4305 / 303) |
| Tightening torque [Nm] | < 1.65 |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: M12; coding: A; Moulded body: PUR |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70587-00 —
