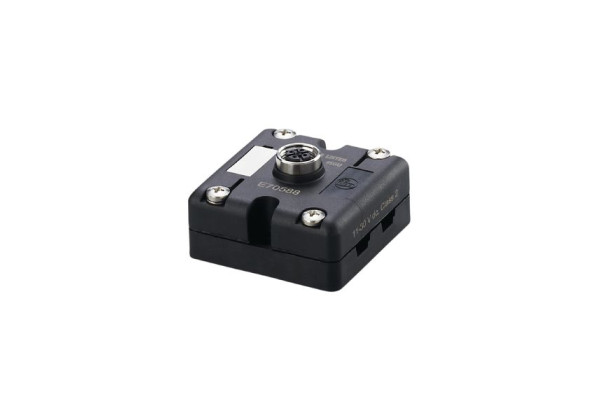

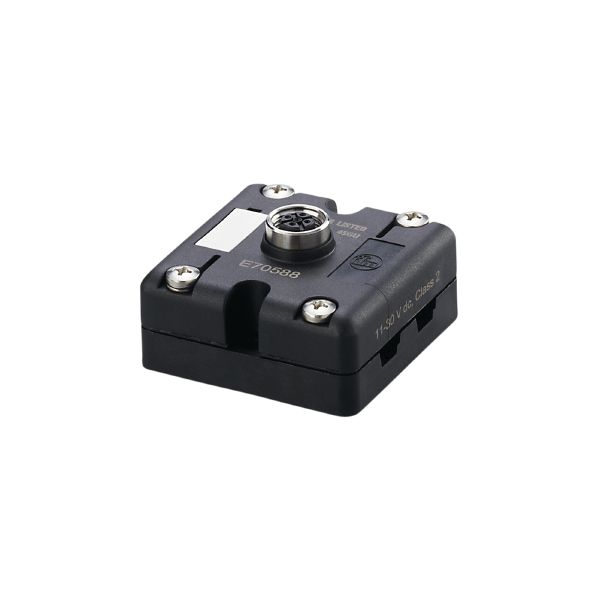

E70588 - ecomat300-QUAD M12 AS-i/24V 4A
Brand: IFM Electronic
Code: E70588
- Reliable distribution of the AS-i voltage or the external 24 V supply
- Easy and quick connection due to insulation displacement technology
- High protection rating for the requirements of harsh industrial environments
- For transition from AS-i flat cable to M12 connector
- For extending the AS-i network by means of spurs
Application
| Design | AS-i / 24 V |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current load total [A] | 2 |
| Additional voltage supply [V] | 24 DC |
Operating conditions
| Ambient temperature [°C] | -25...75 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 95.5 |
|---|---|
| Materials | PA 6.6; socket: stainless steel (1.4404 / 316L); screws: stainless steel (1.4404 / 316L); nut: stainless steel (1.4404 / 316L); O-ring: NBR; flat cable seal: NBR |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70588-00 — 21.07.2022 —
