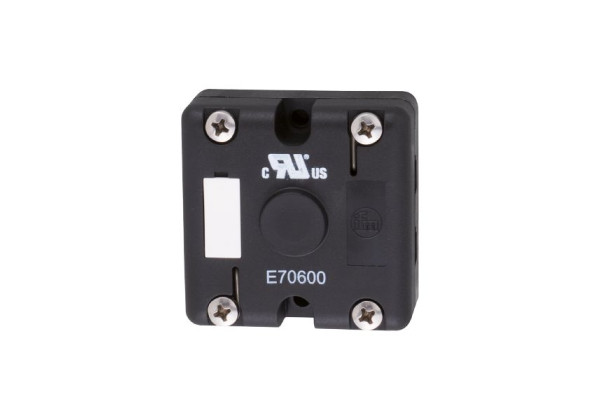

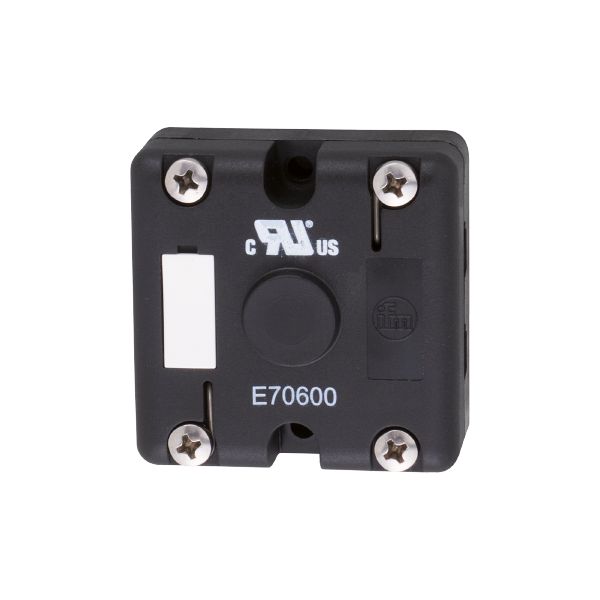

E70600 - ecomat300-QUAD AS-i Splitter Box 8A
Brand: IFM Electronic
Code: E70600
- Reliable distribution of the AS-i voltage or the external 24 V supply
- Easy and quick connection due to insulation displacement technology
- High protection rating for the requirements of harsh industrial environments
- For extending the AS-i network by means of spurs
Application
| Design | AS-i / 24 V |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current load total [A] | 8 |
| Additional voltage supply [V] | 24 DC |
Operating conditions
| Ambient temperature [°C] | -25...75 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 89.5 |
|---|---|
| Materials | PA 6.6; screws: stainless steel (1.4404 / 316L); Nuts: stainless steel (1.4404 / 316L); flat cable seal: NBR |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70600-00 — 21.07.2022 —
