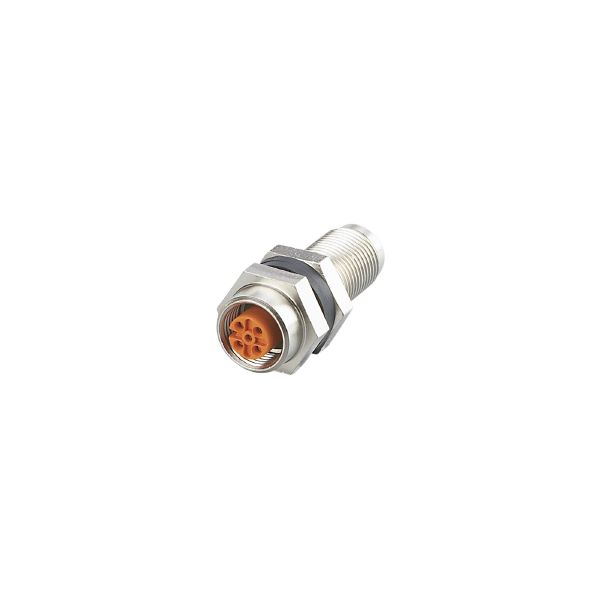

E73009 - Wall passage stainless steel
Brand: IFM Electronic
Code: E73009
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|---|
| Max. current load total [A] | 8; (pin 1+3: 4 A; pin 2+4: 4 A) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 67; IP 69K |
Mechanical data
| Weight [g] | 29.5 |
|---|---|
| Materials | stainless steel (1.4305 / 303); Sealing: EPDM |
| Moulded-body material | stainless steel (1.4305 / 303) |
| Tightening torque [Nm] | 1 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: stainless steel (1.4305 / 303) |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: stainless steel (1.4305 / 303) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E73009-00 — 13.04.2017 —
