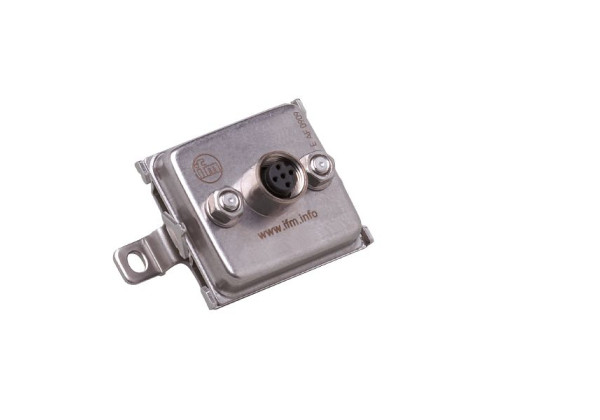

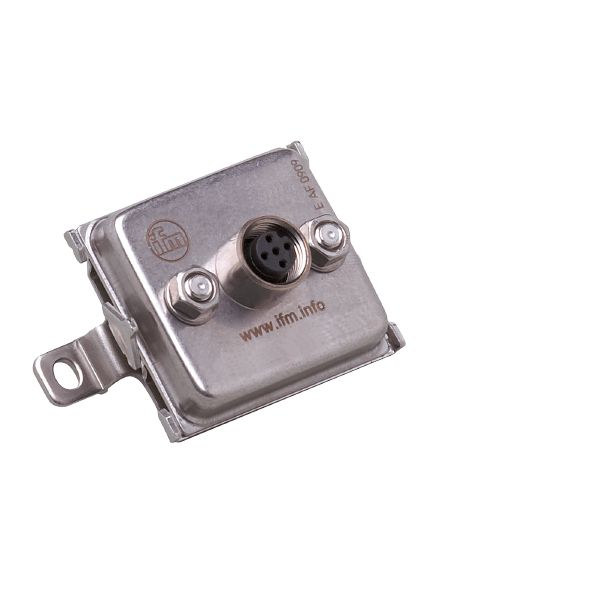

E7354A - ecomat300-FCE Splitter ye/bk II 3D/3G
Brand: IFM Electronic
Code: E7354A
- For transition from AS-i flat cable to M12 connector
- Hygienic design for the requirements of the food and beverage industry
- Easy and quick connection due to insulation displacement technology
- Resistant to high-pressure cleaning with aggressive cleaning agents
- For applications in hazardous areas
Electrical data
| Operating voltage [V] | 24 DC; (; to PELV) |
|---|---|
| Protection class | III |
| Max. current load total [A] | 2 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
Tests / approvals
| ATEX marking | |
|---|---|
| |
Mechanical data
| Weight [g] | 145 |
|---|---|
| Materials | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FKM; Sealing: EPDM |
| Tightening torque [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - socket
| Connection | Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
