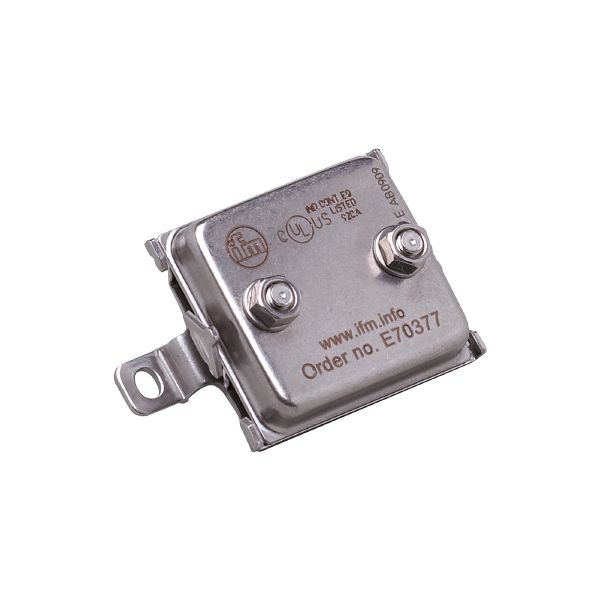

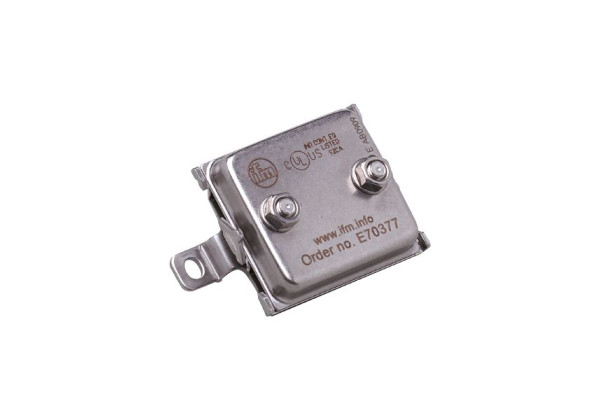

E7377A - ecomat300-FC Splitter ye/ye II 3D/3G
Brand: IFM Electronic
Code: E7377A
- Reliable distribution of the AS-i voltage or the external 24 V supply
- Hygienic design for the requirements of the food and beverage industry
- Easy and quick connection due to insulation displacement technology
- Resistant to high-pressure cleaning with aggressive cleaning agents
- For applications in hazardous areas
Application
| Application | for the distribution of the AS-i voltage or the external 24 V supply |
|---|
Electrical data
| Protection class | III |
|---|---|
| Max. current load total [A] | 8 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69K) |
Tests / approvals
| ATEX marking | |
|---|---|
| |
Mechanical data
| Weight [g] | 132.5 |
|---|---|
| Materials | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FKM; Sealing: EPDM |
| Tightening torque [Nm] | 2.5; (Mounting screw) |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — E7377A — 25.08.2021 —
