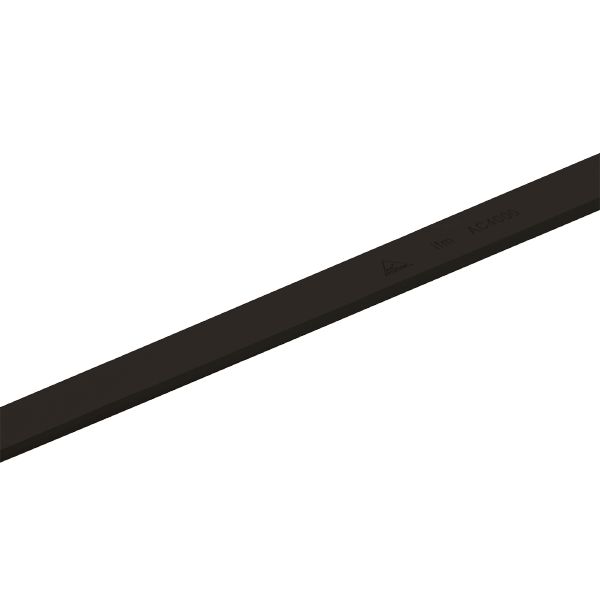

E74013 - ecomat300-Flat cable 500 meter EPDM bk
Brand: IFM Electronic
Code: E74013
- For the reliable external 24 V power supply in AS-i networks
- Connection of components by means of insulation displacement technology
- Reverse polarity protection due to special shape
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Halogen-free |
|---|---|
| Application | external 24 V power supply |
Electrical data
| Operating voltage [V] | 24 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|
Mechanical data
| Weight [g] | 37500 |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 500 m |
Electrical connection
| Cable: 500 m, EPDM, Halogen-free, black; 2 x 1.5 mm² |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E74013-00 — 13.04.2023 —
