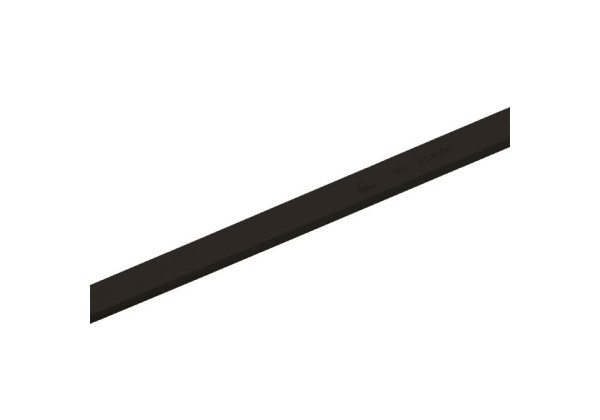

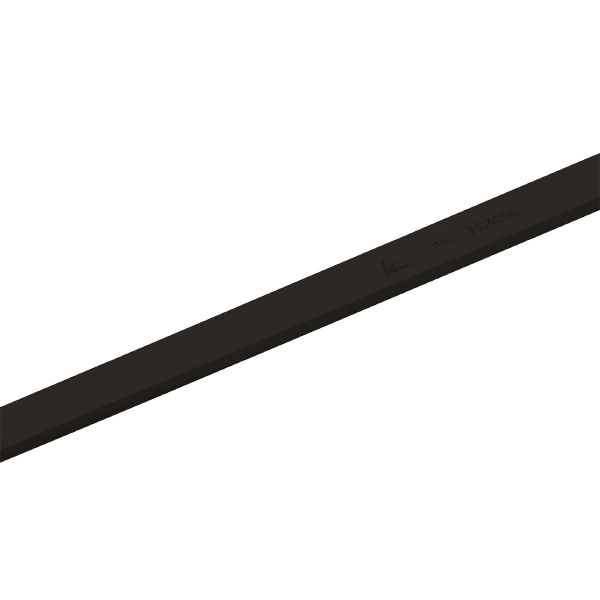

E74310 - ecomat300-Flat cable 100 m Process bk
Brand: IFM Electronic
Code: E74310
- For the reliable external 24 V power supply in AS-i networks
- Connection of components by means of insulation displacement technology
- Reverse polarity protection due to special shape
- Special cable material for use in the food and beverage industry
- Wide operating temperature range
Application
| Design | for use of insulation displacement technology |
|---|---|
| Application | food industry; external 24 V power supply |
Electrical data
| Operating voltage [V] | 24 DC; (Peak voltage 300 V) |
|---|
Operating conditions
| Ambient temperature [°C] | -40...105 |
|---|
Mechanical data
| Weight [g] | 6791 |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 100 m |
Electrical connection
| Cable: 100 m, TPE-PVC compound, black; 2 x 1.5 mm² |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E74310-00 — 13.04.2023 —
