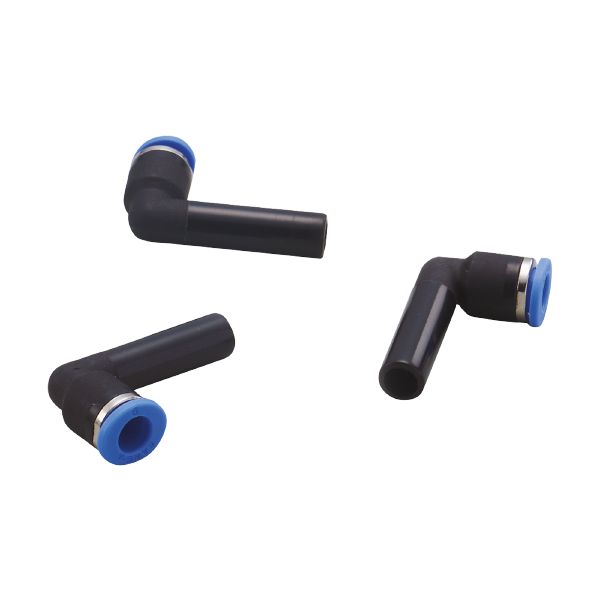

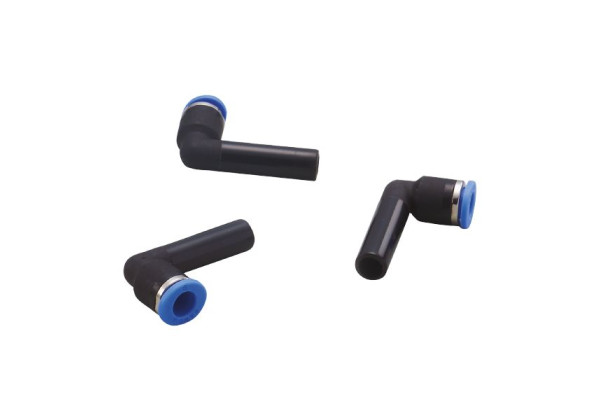

E75229 - ecomat300-AirBox push-in L-connector 10 pcs.
Brand: IFM Electronic
Code: E75229
- For a reliable pneumatic connection
- Easy and quick installation in an AirBox
Application
| Media | compressed air according to ISO 8573-1: 2001 |
|---|
Operating conditions
| Operating pressure [bar] | 20; (min. -0,95) |
|---|---|
| Ambient temperature [°C] | -20...80 |
Mechanical data
| Weight [g] | 34.5 |
|---|---|
| Materials | housing: nickel-plated brass / PA66; Tooth lock washer: stainless steel |
| Tube fittings | 6 mm |
| Sleeve diameter [mm] | 8 |
Remarks
| Pack quantity | 10 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75229-00 — 28.03.2017 —
