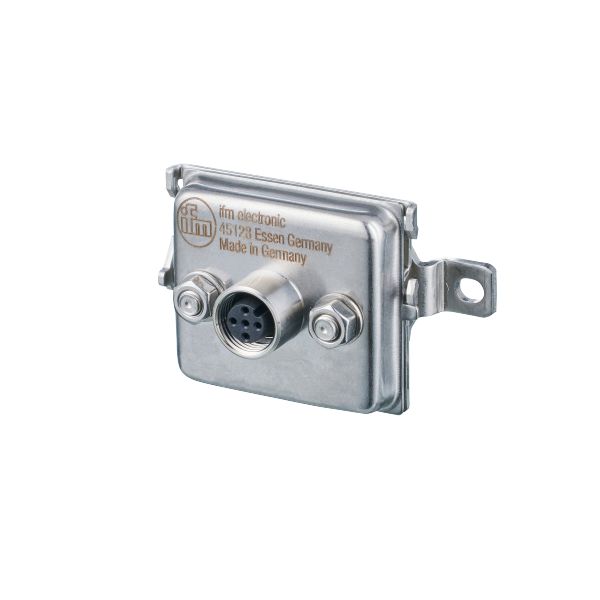

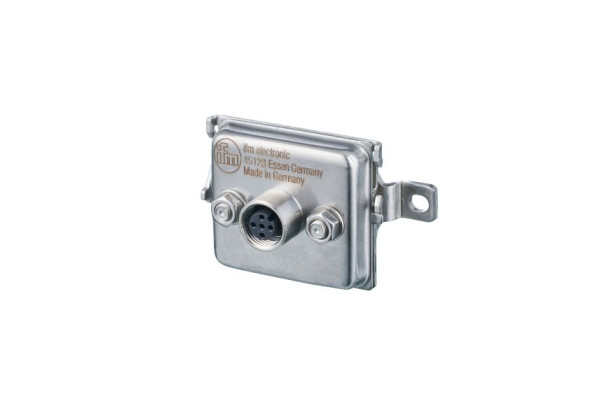

E75354 AS-Interface flat cable insulation displacement connector FC Splitter ye ProcessL
Brand: IFM Electronic
Code: E75354
Application
| Design | AS-i |
|---|---|
| Application | hygienic and wet areas in the food industry |
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 104.3 |
|---|---|
| Materials | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Tightening torque [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connection | Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75354-00 — 15.02.2023 —
