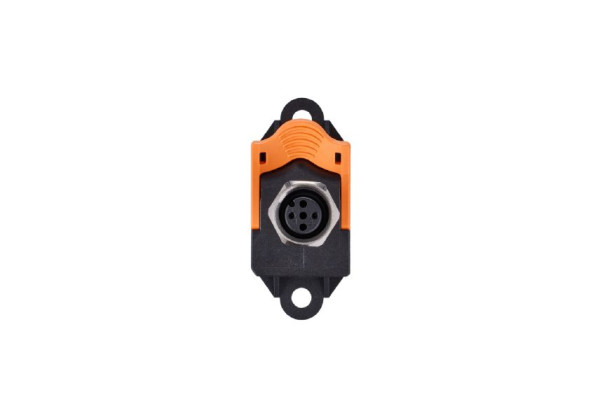

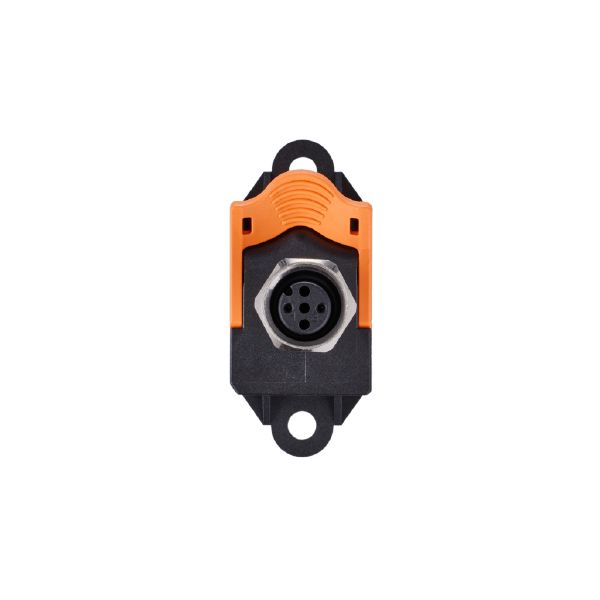

E75471 AS-Interface flat cable insulation displacement connector FC Quick Connect M12 stainless
Brand: IFM Electronic
Code: E75471
Electrical data
| Operating voltage [V] | < 42 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -25...75 |
| Protection | IP 67 |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 18.45 |
|---|---|
| Materials | housing: PA; O-ring: EPDM; Lock nut: stainless steel (1.4305 / 303); contact pins: bronze tin-plated |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: M12; coding: A; Tightening torque: 0.4...0.6 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75471-00 — 02.05.2022 —
