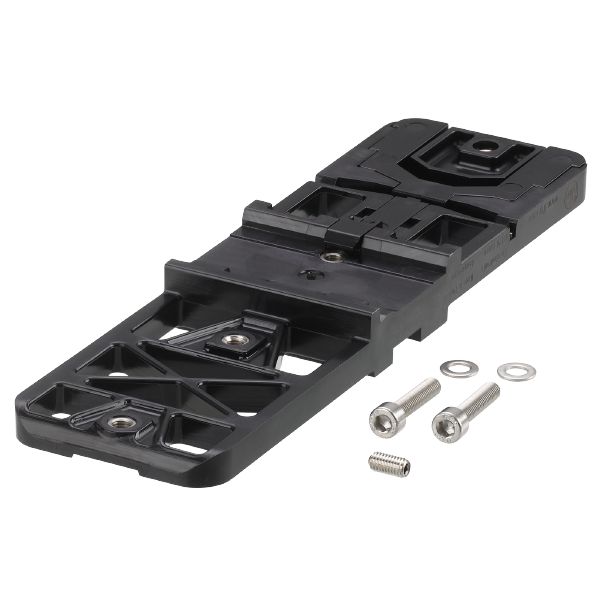

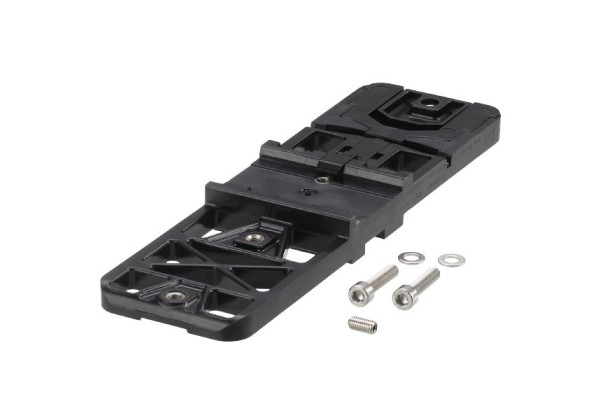

E78002 DIN rail adapter DIN rail adapter 4/6 rows
Brand: IFM Electronic
Code: E78002
- Transfer of IO-Link masters, Ethernet switches and I/O modules to the DIN rail
- Complete mounting set for various module sizes
- Simple, quick and vibration resistant mounting
- Robust design for use in harsh environments
- For installation directly on the machine or in the control cabinet
Application
| Design | for DIN rail mounting, e.g. of IO-Link masters 8-Port |
|---|
Mechanical data
| Weight [g] | 103.8 |
|---|---|
| Type of mounting | DIN rail mounting |
| Dimensions [mm] | 207.9 x 60 x 19 |
| Materials | DIN rail adapter: PC/ABS; threaded bush: stainless steel (1.4404 / 316L) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E78002-00 — 04.01.2023 —
