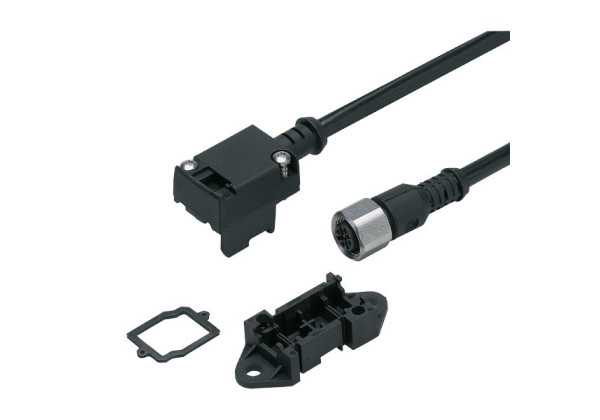

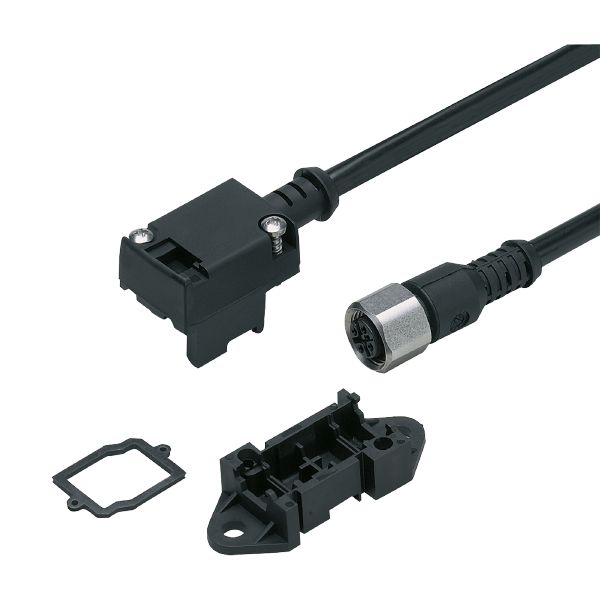

E79998 - ecomat300-FC connector, M12, V2A, 1m
Brand: IFM Electronic
Code: E79998
- For transition from AS-i flat cable to M12 connector
- For extending the AS-i network by means of spurs
- Easy and quick connection due to insulation displacement technology
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | AS-i |
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 82.7 |
|---|---|
| Materials | housing upper part: PUR; housing lower part: PA 6.6; screw: stainless steel (1.4305 / 303); Lock nut: stainless steel (1.4305 / 303) |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 1 m, PVC, Ø 5.75 mm; 2 x 0.75 mm², PVC |
|---|---|
| Connection | Connector: M12, straight; coding: A; Contacts: gold-plated |
