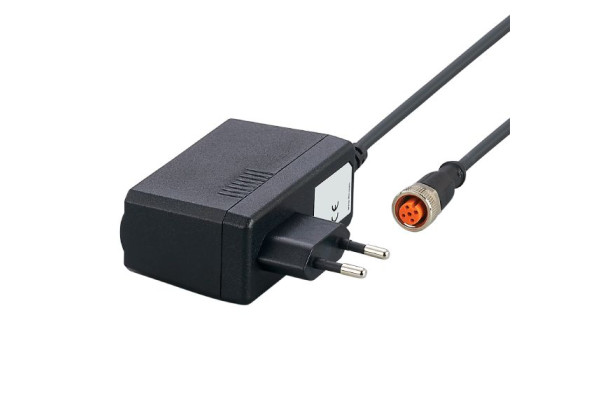

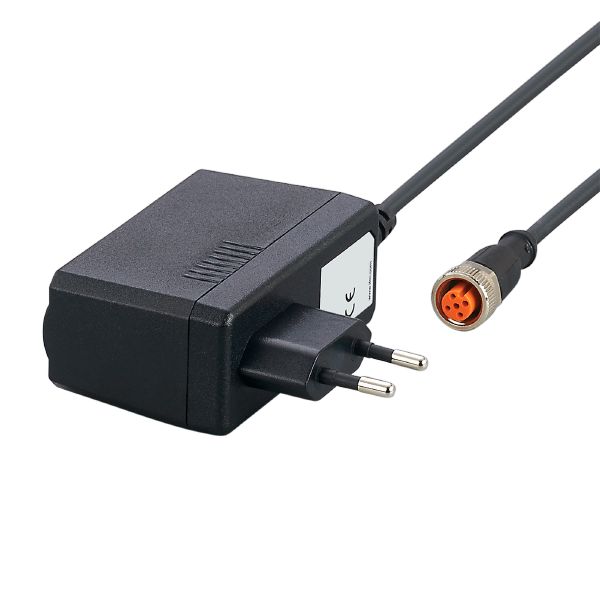

E80120 Plug-in power supply Power Supply 24VDC/1.0A/EU

Code: E80120

Zuverlässige Versorgung von Sensoren mit 24 V DC Betriebsspannung
Besonders platzsparende Bauform
Einfacher Anschluss durch bewährte M12-Steckverbindung

Electrical data

Frequency AC [Hz]	47...63
Input voltage range AC [V]	90...264
Output voltage DC [V]	24
Protection class	II
Max. residual ripple [mV]	200
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	82.22
Input current (nominal voltage 230 V AC / 50 Hz) [A]	0.8

Outputs

Output current, total [A]	1

Operating conditions

Ambient temperature [°C]	0...40
Protection	IP 40; (M12 connector: IP 69K)

Tests / approvals

EMC

EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3

Mechanical data

Weight [g]	203.5
Materials	housing: plastics black;

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m; 2 x 0.5 mm²
	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80120-00 — 01.07.2019 —
