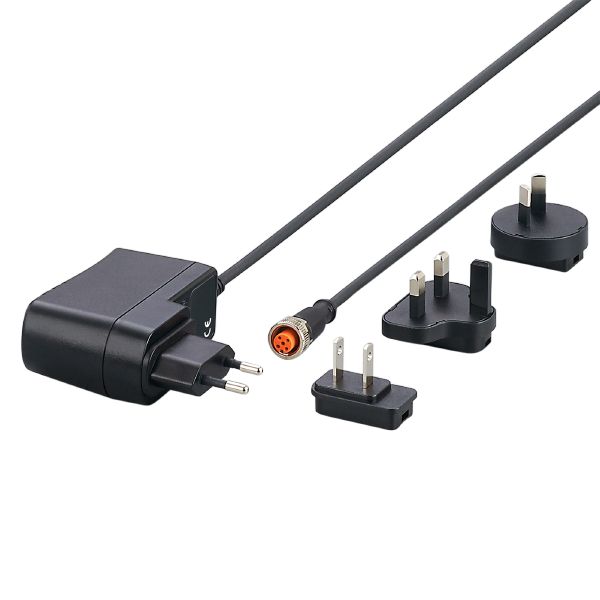

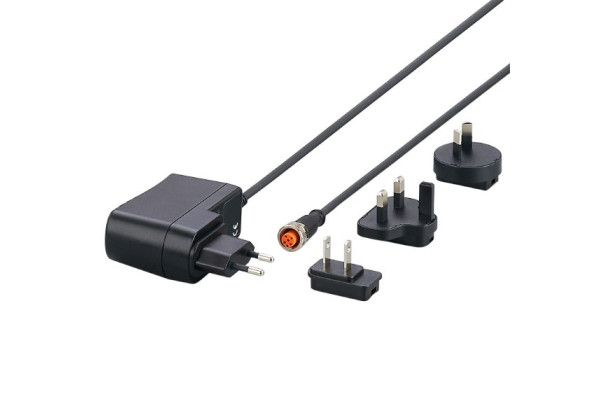

E80121 Plug-in power supply Power Supply 24VDC/1.0A/ww
Brand: IFM Electronic
Code: E80121
- Reliable supply of sensors with 24 V DC operating voltage
- Particularly space-saving design
- Easy connection via the tried-and-tested M12 connector
Electrical data
| Nominal frequency AC [Hz] | 50...60 |
|---|---|
| Input voltage range AC [V] | 100...240 |
| Output voltage DC [V] | 24 |
| Protection class | II |
| Max. residual ripple [mV] | 300 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] | 86.8 |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] | 0.75 |
Outputs
| Output current, total [A] | 1 |
|---|
Operating conditions
| Ambient temperature [°C] | 0...40 |
|---|---|
| Protection | IP 40; (M12 connector: IP 69K) |
Mechanical data
| Weight [g] | 254.5 |
|---|---|
| Materials | housing: plastics black |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m; 2 x 0.5 mm² | |
| Connector: 1 x M12 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80121-00 — 28.06.2019 —
