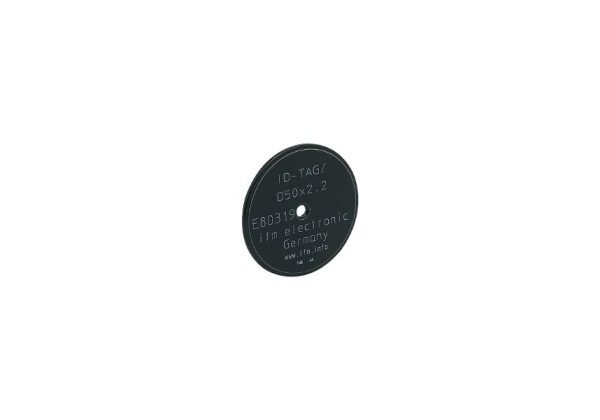

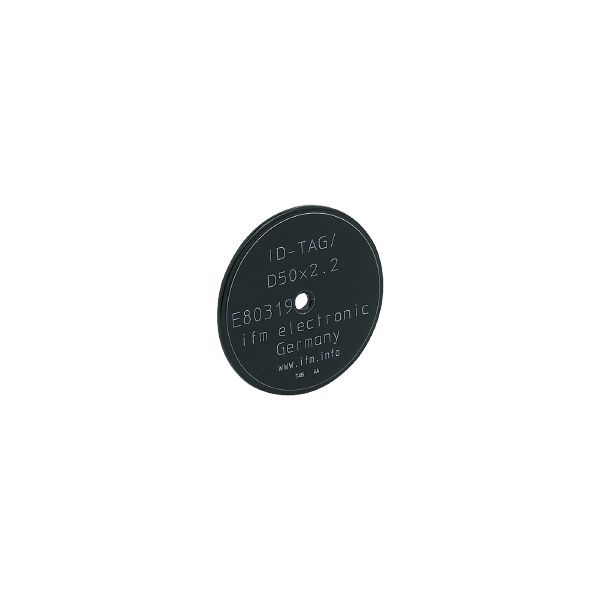

E80319 - efector190-ID-TAG/D50X2.2/01
Brand: IFM Electronic
Code: E80319
- RFID tag 125 kHz - Q5
- Reliable coding of workpiece carriers
- Suitable for installation with plastic and metal carriers
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|---|
| Operating temperature (active) [°C] | -25...70 |
| Peak temperature (passive) [°C] | 100; (duration of test: 1 x 100 h) |
Electrical data
| Operating frequency [MHz] | 0,125 |
|---|---|
| Memory size [bit] | 224 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Storage temperature [°C] | -40...90 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 2854 |
Mechanical data
| Weight [g] | 6.3 |
|---|---|
| Dimensions [mm] | Ø 50 / L = 2.2 |
| Materials | PC black |
Remarks
| Remarks |
| ||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Other data
read/write distance (mm)
| positioning of the ID tag | read | write | ||
| DTA100 | overhead | 20...60 | 20...50 | |
| DTA101 | overhead | 20...60 | – | |
| DTA200 | front side | 65 | 65 | |
| DTA201 | front side | 65 | – | |
| DTA300 | front side | 110 | 110 | |
| DTA301 | front side | 110 | – |
| All indications apply to static read/write operations. | |
| Indications without comment refer to the installation of ID tags in non-metallic environments. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80319-01 — 05.11.2020 —
