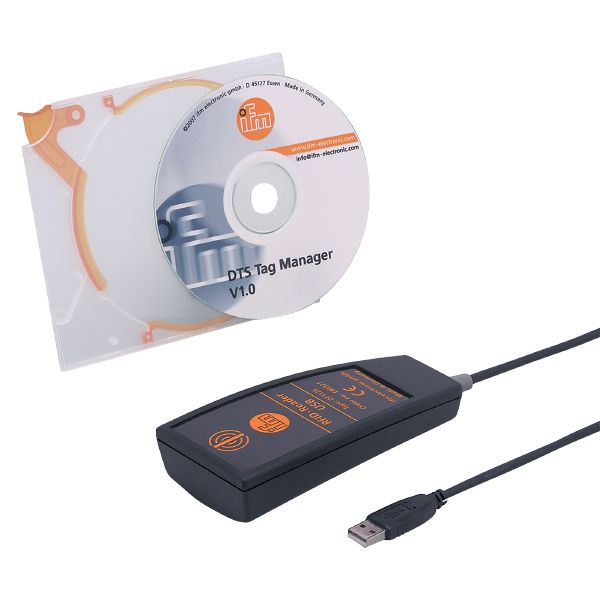

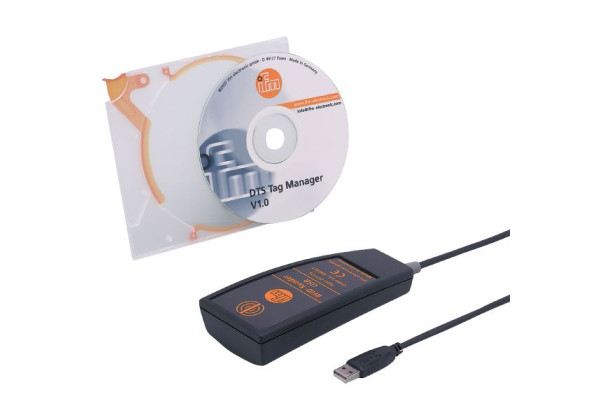

E80321 - efector190-RFID HANDHELD READER USB
Brand: IFM Electronic
Code: E80321
- For use of RFID tags 125KHz - Q5
- Non-contact reading and writing of RFID transponders (ID tags)
- With USB interface
- Suitable for use in PCs or notebooks
- Software supplied
Application
| Application | for use in PCs or notebooks |
|---|
Electrical data
| Nominal voltage DC [V] | 5 |
|---|---|
| Current consumption [mA] | < 60 |
| Operating frequency [MHz] | 0,125 |
Operating conditions
| Ambient temperature [°C] | -20...50 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 291.5 |
|---|---|
| Materials | PS (polystyrene) |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable: 1.8 m |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80321-01 — 22.01.2009 —
