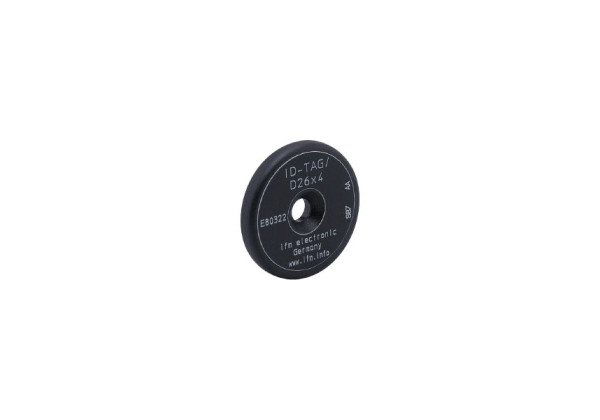

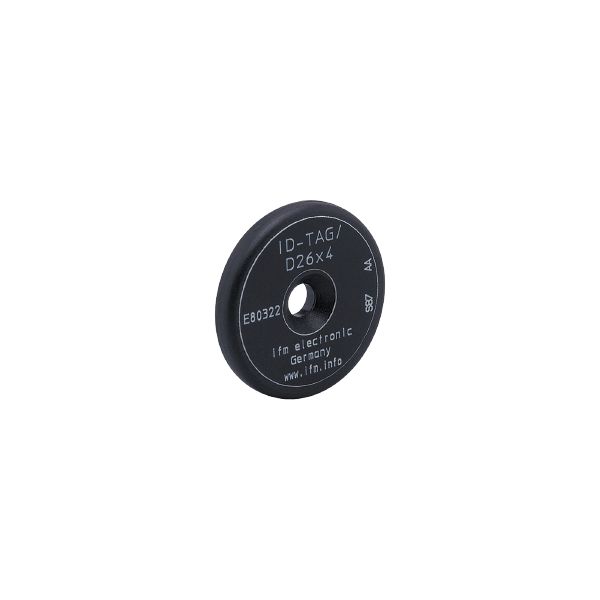

E80322 - efector190-ID-TAG/D26X4/01

Code: E80322

RFID tag 125 kHz - Q5
Reliable coding of workpiece carriers
Suitable for use in increased temperature range

Application

Application	coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]	-25...85
Peak temperature (passive) [°C]	200; (duration of test: 160 °C: 500 x 20 min, 200 °C: 10 x 20 min)

Electrical data

Operating frequency [MHz]	0,125
Memory size [bit]	224
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-25...140
Protection	IP 68

Tests / approvals

Shock resistance

DIN IEC 68-2-29

40 g 18 ms

Vibration resistance

DIN IEC 68-2-6

10 g 10...2000 Hz

MTTF [years]

2854

Mechanical data

Weight [g]	4.9
Dimensions [mm]	Ø 26 / L = 4
Materials	PA High Temperature

Remarks

shock 6 Achsen je 2000 Schocks

vibration 3 Achsen je 2,5 h

Storage temperature 1 x 100 h (160°C), 1 x 2 h (180°C), 10 x 30 min (20°C), 10 x 10 min (200°C)

peak temperature

500 Zyklen 5 min (160 °C), 20 s (ΔT), 5 min (20 °C), 20 s (ΔT)

10 Zyklen 10 min (200 °C), 20 s (ΔT), 1 h (20 °C), 20 s (ΔT)

Pack quantity

1 pcs.

Other data

read/write distance (mm)

	positioning of the ID tag	read	write
DTA100	overhead	15...40	15...40
DTA101	overhead	15...40	–
DTA200	front side	55	55
DTA201	front side	55	–
DTA300	front side	80	80
DTA301	front side	80	–

	All indications apply to static read/write operations.
	Indications without comment refer to the installation of ID tags in non-metallic environments.
