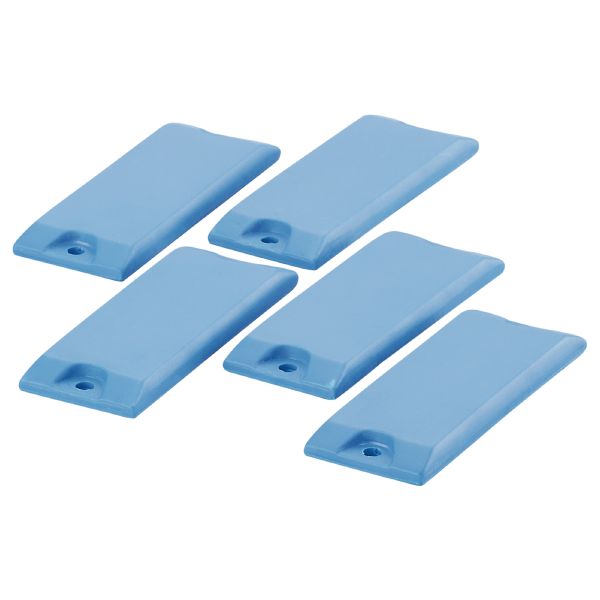

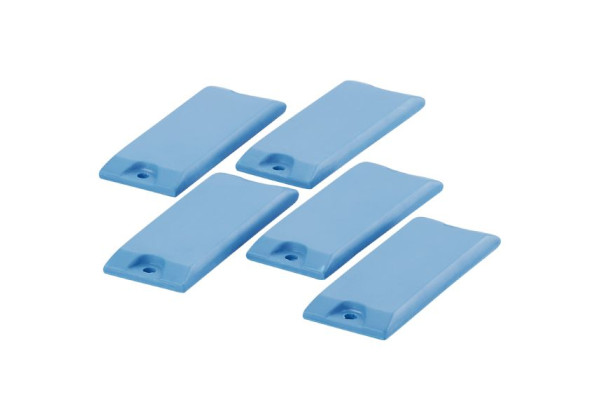

E80343 - ID-TAG/90X34x7/06

Code: E80343

RFID tag 13.56 MHz - ISO15693
Reliable coding of workpiece carriers and products
Suitable tags for installation on metal and non-metal materials

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...85
Protection	IP 68

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g 18 ms

Vibration resistance

DIN IEC 68-2-6

10 g 10...2000 Hz

Radio approval

ISO 15693

Mechanical data

Weight [g]	117
Type of mounting	Installation on metal and non-metal materials; (screw fastening ; sticking to a surface ; In case of installation on metal mount the flat side on the surface)
Dimensions [mm]	90 x 34 x 7
Materials	ABS

Remarks

Pack quantity	5 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	-
ANT411 / DTI411	5
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	-
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	20
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	15
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	25
ANT513 / DTI513 / DTC510	50
ANT515 / DTI515 / ANT516 / DTI516	20
ANT600 / DTI600	95

read distance when mounted on metal (mm)

ANT410 / DTI410	10
ANT411 / DTI411	15
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	5
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	30
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	25
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	40
ANT513 / DTI513 / DTC510	55
ANT515 / DTI515 / ANT516 / DTI516	25
ANT600 / DTI600	80
