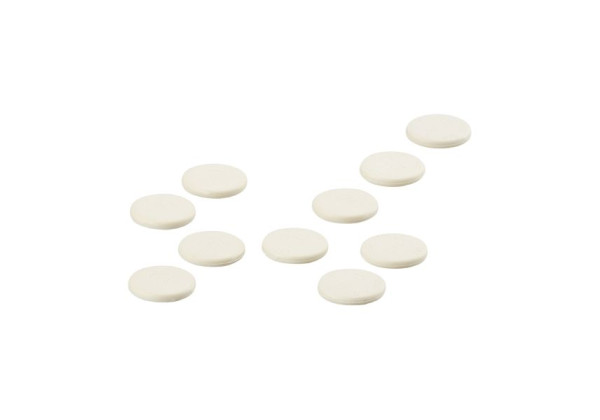

E80344 - ID-TAG/16X3/06
Brand: IFM Electronic
Code: E80344
- RFID tag 13.56 MHz - ISO15693
- Reliable coding of workpiece carriers and products
- Small compact tags for installation on metal and non-metal materials
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|
Electrical data
| Operating frequency [MHz] | 13,56 |
|---|---|
| Memory size [bit] | 896 |
| Memory type | EEPROM |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size [Byte] | 4 |
| Unique Identification Number (UID) [Byte] | 8 |
| RFID standard | ISO 15693 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 68 |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| Radio approval | ISO 15693 |
Mechanical data
| Weight [g] | 12 |
|---|---|
| Type of mounting | installation on non-metal materials; (sticking to a surface) |
| Dimensions [mm] | Ø 16 / L = 3 |
| Materials | PPS |
Remarks
| Pack quantity | 10 pcs. |
|---|
Other data
Reading distance when mounted on non-metal (mm)
| ANT410 / DTI410 | 10 |
| ANT411 / DTI411 | 15 |
| ANT420 / DTI420 / DTM424 / DTI424 / DTM426 | 10 |
| ANT421 / DTI421 / DTM425 / DTI425 / DTM427 | 25 |
| ANT430 / DTI430 / DTM434 / DTI434 / DTM436 | 20 |
| ANT431 / DTI431 / DTM435 / DTI435 / DTM437 | 35 |
| ANT513 / DTI513 / DTC510 | 45 |
| ANT515 / DTI515 / ANT516 / DTI516 | 20 |
| ANT600 / DTI600 | 90 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80344-00 — 05.11.2020 —
