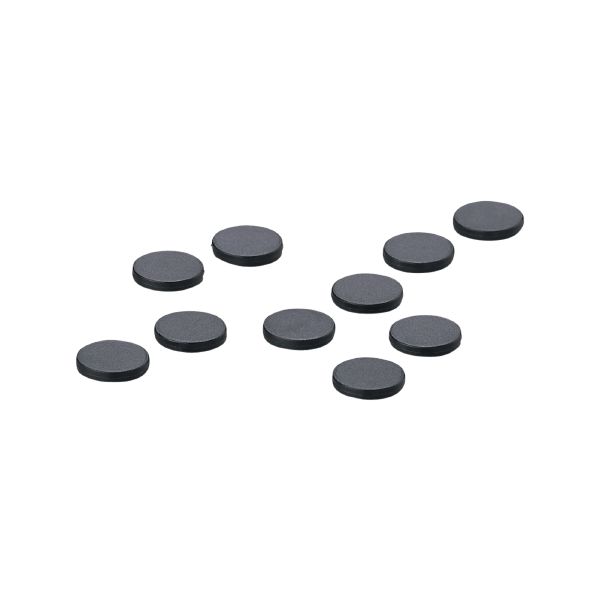

E80388 - efector190-ID-TAG/12X2.3/06

Code: E80388

RFID tag 13.56 MHz - ISO15693
Reliable coding of workpiece carriers and products
Small compact tags for installation on metal and non-metal materials

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	Vigo
Number of blocks	32
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-40...90
Storage temperature [°C]	-40...90
Protection	IP 68

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g 18 ms

Vibration resistance

DIN IEC 68-2-6

10 g 10...2000 Hz

Radio approval

ISO 15693

Mechanical data

Weight [g]	5.4
Type of mounting	Installation on metal and non-metal materials; (sticking to a surface ; In case of installation on metal mount the grey side on the surface)
Dimensions [mm]	Ø 12.3 / L = 2.1
Materials	PPS black; epoxy resin potted

Remarks

Pack quantity	10 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	10
ANT411 / DTI411	5
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	15
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	10
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	15
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	15
ANT513 / DTI513 / DTC510	5
ANT515 / DTI515 / ANT516 / DTI516	20
ANT600 / DTI600	-

read distance when mounted on metal (mm)

ANT410 / DTI410	5
ANT411 / DTI411	5
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	5
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	10
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	10
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	15
ANT513 / DTI513 / DTC510	10
ANT515 / DTI515 / ANT516 / DTI516	-
ANT600 / DTI600	-
