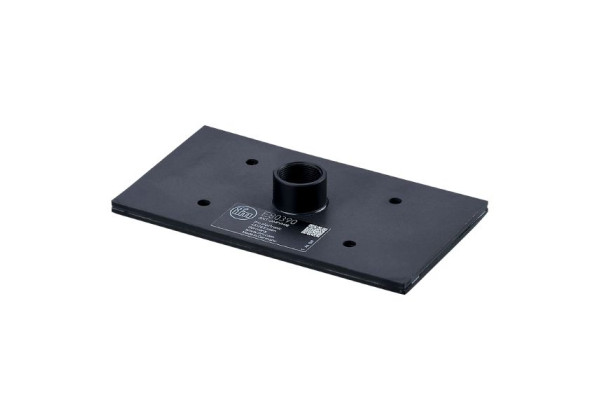

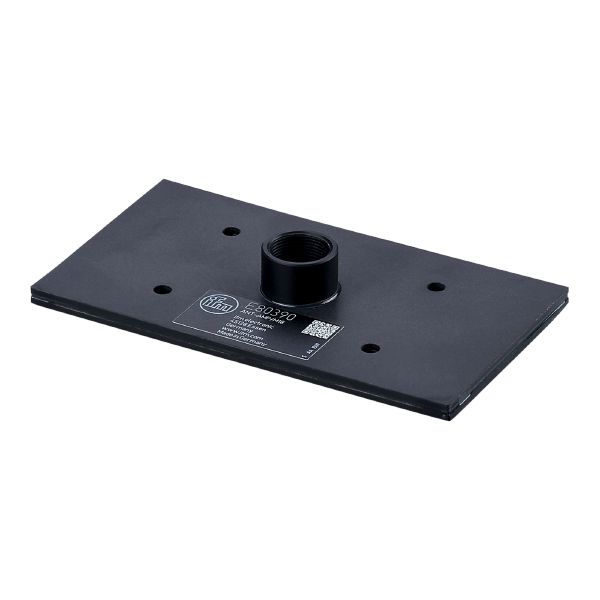

E80390 - efector190-ANT-AMP/M18
Brand: IFM Electronic
Code: E80390
- For increasing the range of RFID antennas
- Quick and easy mounting and fixing
Electrical data
| Operating frequency [MHz] | 13,56 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -20...60 |
Mechanical data
| Weight [g] | 95.5 |
|---|---|
| Materials | PVC |
| Tightening torque [Nm] | 0.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Other data
Tag E80371 (30 mm)
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 30 mm | |||
| ANT421 / DTM425 + E80390 | 80 mm |
Tag E80384 (50 mm)
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 60 mm | |||
| ANT421 / DTM425 + E80390 | 100 mm |
Tag E80320 (ISO card)
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 75 mm | |||
| ANT421 / DTM425 + E80390 | 150 mm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80390-00 — 09.11.2015 —
