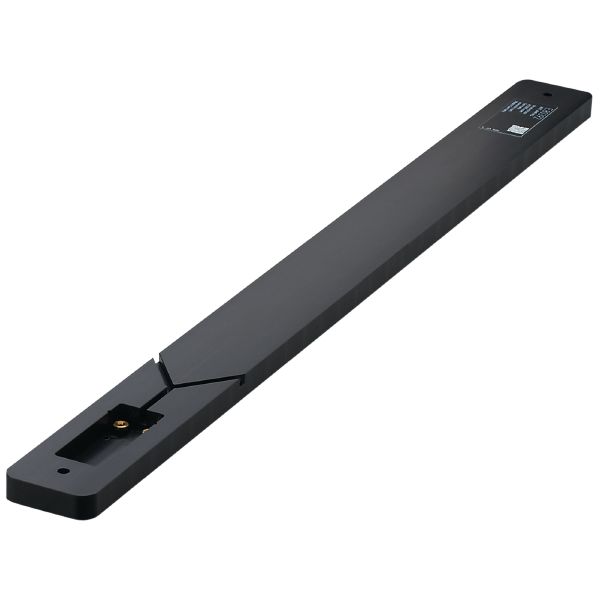

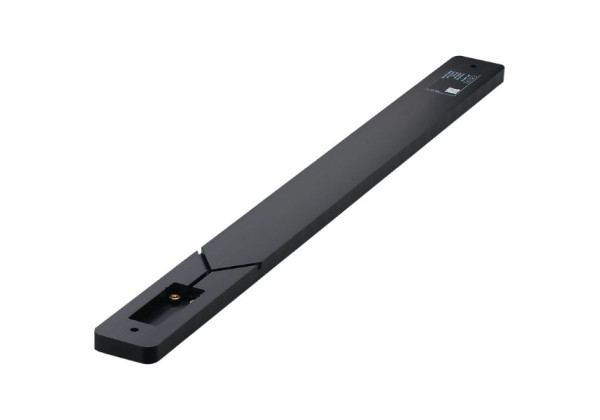

E80392 - ANT-AMP/490x40/KQ
Brand: IFM Electronic
Code: E80392
- To increase the travel speed of RFID antennas
- Quick and easy mounting and fixing
Electrical data
| Operating frequency [MHz] | 13,56 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -20...60 |
Mechanical data
| Weight [g] | 370.5 |
|---|---|
| Materials | POM |
| Tightening torque [Nm] | 0.5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Other data
Tag E80371 (30 mm)
| antenna | range without metal | |||
| ANT515 / ANT516 + E80392 | 30 mm |
Tag E80384 (50 mm)
| antenna | range without metal | |||
| ANT515 / ANT516 + E80392 | 50 mm |
Tag E80320 (ISO card)
| antenna | range without metal | |||
| ANT515 / ANT516 + E80392 | 75 mm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80392-00 — 14.04.2016 —
