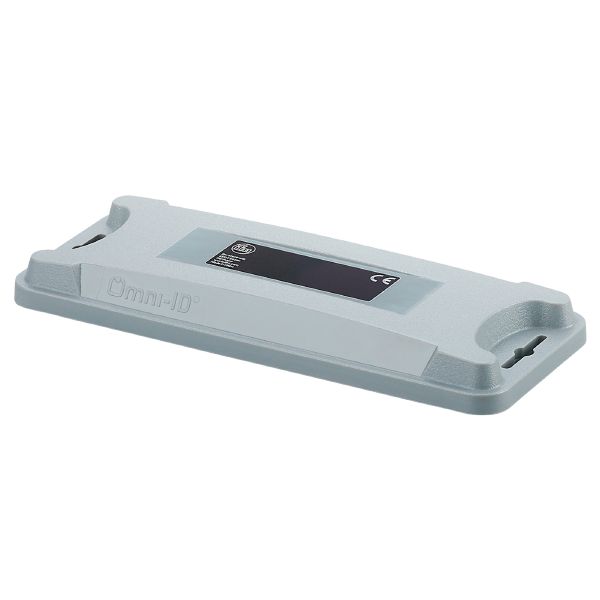

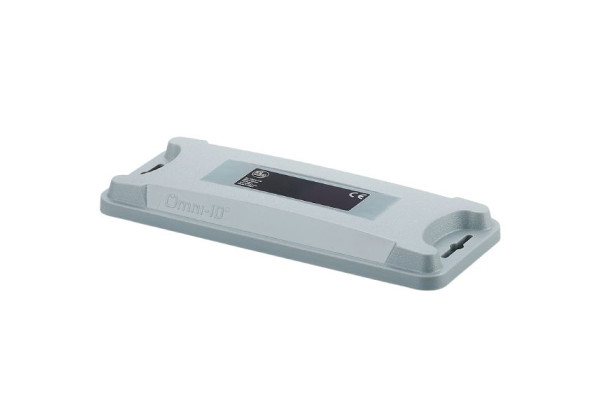

E80394 RFID tag ID-TAG/174x70x17.6/04
Brand: IFM Electronic
Code: E80394
Application
| Application | RFID coding of metal tanks |
|---|
Electrical data
| Operating frequency [MHz] | 860...930; (India: 865...867 MHz) |
|---|---|
| Memory size [bit] | 512 |
| Memory type | EEPROM |
| Chip type | Impinj Monza 4QT |
| Tag identifier (TID) [Byte] | 64 |
| Electronic product code (EPC) | 96 bit; (extendable: 128 Bits) |
| RFID standard | EPC Class1 GEN2/ISO 18000-6C |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 68 |
Mechanical data
| Weight [g] | 119.2 |
|---|---|
| Dimensions [mm] | 70 x 174 x 17.6 |
| Materials | housing: polycarbonate-ABS |
Remarks
| Pack quantity | 1 pcs. |
|---|
Other data
read distance (m)
| DTE80x | 3 |
| DTE90x | 3.3 |
| ANT860 / ANT960 | 9 |
| ANT820 / ANT920 | 2 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80394-00 — 03.04.2019 —
