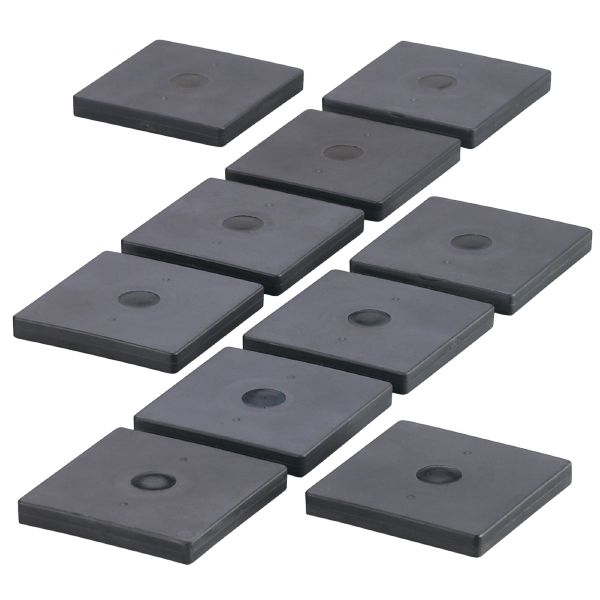

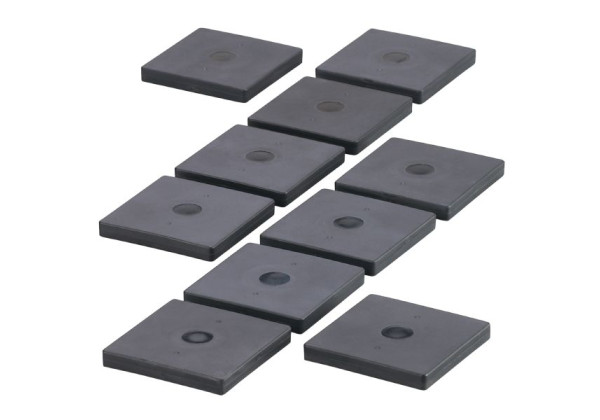

E80400 - ID-TAG/51x51/06

Code: E80400

RFID tag 13.56 MHz - ISO15693
Reliable coding of workpiece carriers and products
Suitable for use in increased temperature range

Application

Application	coding of workpiece carriers in routing conveyors

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693

Operating conditions

Ambient temperature [°C]

-55...240

Note on ambient temperature

1,5 h 185 °C

1 h 200 °C

0,75 h 220 °C

0,5 h 240 °C

maximum dwell time at maximum ambient temperature

Protection

IP 68

Tests / approvals

Shock resistance

EN 60068-2-29

40 g 18 ms

Vibration resistance

EN 60068-2-6

10 g 10...2000 Hz

Radio approval

ISO 15693

Mechanical data

Weight [g]	281
Type of mounting	Installation on metal and non-metal materials; (screw fastening: spacer E80401; sticking to a surface)
Dimensions [mm]	51 x 6.5 x 51
Materials	PPS

Remarks

Pack quantity	10 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	20
ANT411 / DTI411	25
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	15
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	50
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	40
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	65
ANT513 / DTI513 / DTC510	100
ANT515 / DTI515 / ANT516 / DTI516	50
ANT600 / DTI600	200

read distance when mounted on metal (mm)

ANT411 / DTI411	16
ANT421 / DTI421 / DTI425	35
ANT430 / DTI430 / DTI434	25
ANT431 / DTI431 / DTI435	40
ANT513 / DTI513	60
ANT515 / DTI515 / ANT516 / DTI516	25
ANT600 / DTI600	90
