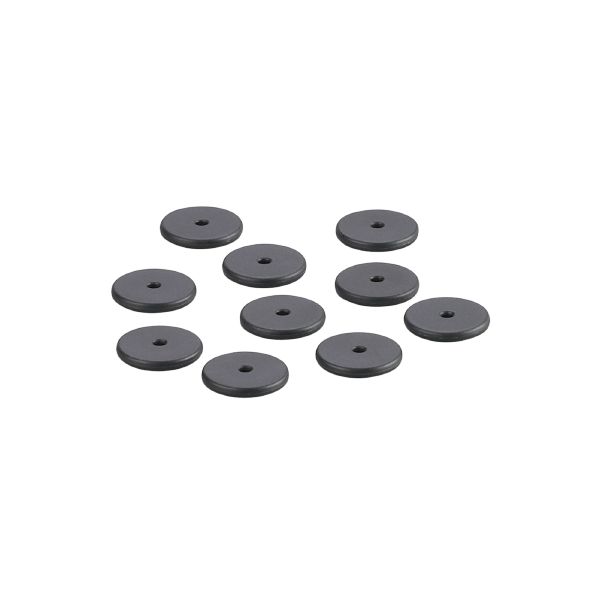

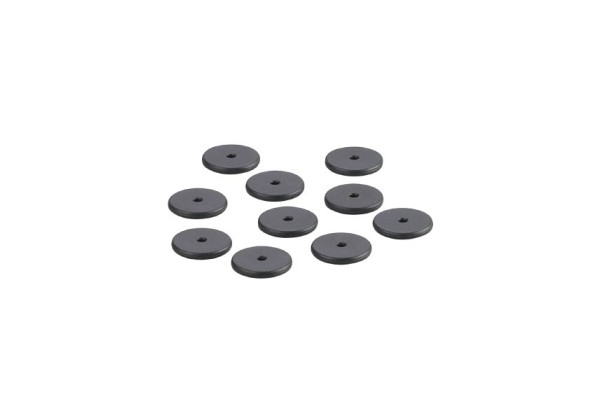

E80404 - ID-TAG/22X3.0/06

Code: E80404

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-25...90
Storage temperature [°C]	-25...120
Protection	IP 68

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g 18 ms

Vibration resistance

DIN IEC 68-2-6

10 g 10...2000 Hz

Radio approval

ISO 15693

Mechanical data

Weight [g]	18.3
Type of mounting	Installation on metal and non-metal materials; (screw fastening ; sticking to a surface ; In case of installation on metal, mount marked side on surface (marking: B or dot))
Dimensions [mm]	Ø 22 / L = 3
Materials	PA 9T

Remarks

Remarks
Pack quantity	10 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	6
ANT411 / DTI411	10
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	5
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	15
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	10
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	15
ANT513 / DTI513 / DTC510	15
ANT515 / DTI515 / ANT516 / DTI516	5
ANT600 / DTI600	40

read distance when mounted on metal (mm)

ANT410 / DTI410	6
ANT411 / DTI411	10
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	8
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	16
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	15
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	20
ANT513 / DTI513 / DTC510	25
ANT515 / DTI515 / ANT516 / DTI516	10
ANT600 / DTI600	-
