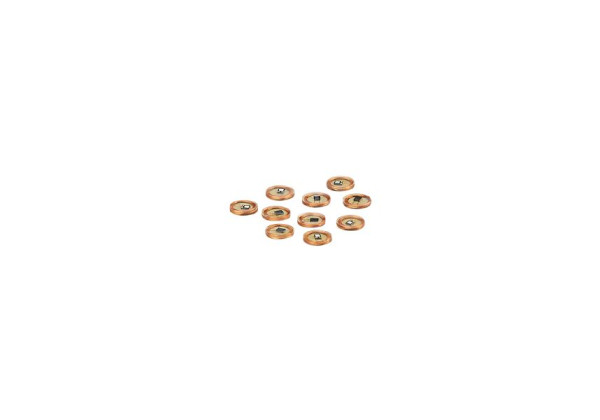

E80406 RFID tag ID-TAG/7.5X1.0/06
Brand: IFM Electronic
Code: E80406
Electrical data
| Operating frequency [MHz] | 13,56 |
|---|---|
| Memory size [bit] | 896 |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size [Byte] | 4 |
| Unique Identification Number (UID) [Byte] | 8 |
| RFID standard | ISO 15693 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 68 |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 1.85 |
|---|---|
| Dimensions [mm] | Ø 7.5 / L = 1 |
| Materials | housing: Epoxydharz |
Remarks
| Pack quantity | 10 pcs. |
|---|
Other data
Reading distance when mounted on non-metal (mm)
| ANT410 / DTI410 | 10 |
| ANT411 / DTI411 | 10 |
| ANT420 / DTI420 / DTM424 / DTI424 / DTM426 | 10 |
| ANT421 / DTI421 / DTM425 / DTI425 / DTM427 | 20 |
| ANT430 / DTI430 / DTM434 / DTI434 / DTM436 | 15 |
| ANT431 / DTI431 / DTM435 / DTI435 / DTM437 | 25 |
| ANT513 / DTI513 / DTC510 | 30 |
| ANT515 / DTI515 / ANT516 / DTI516 | 10 |
| ANT600 / DTI600 | - |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80406-00 — 10.04.2018 —
