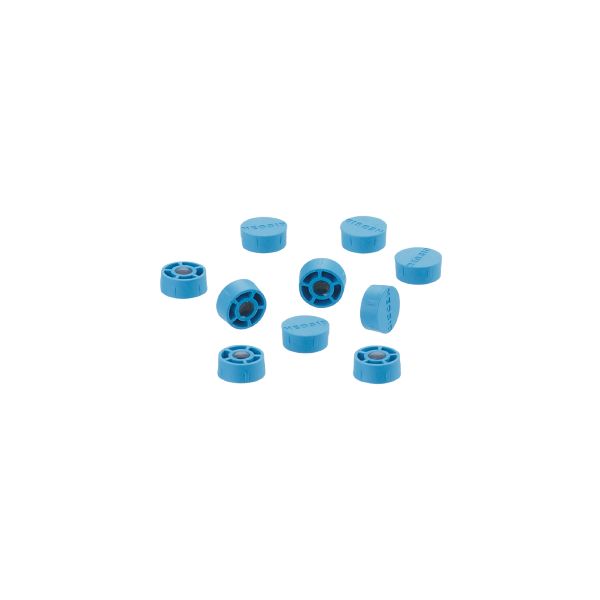

E80415 RFID tag ID-TAG/10,1X3,9/03 (10 pieces)
Brand: IFM Electronic
Code: E80415
Electrical data
| Operating frequency [MHz] | 13,56 |
|---|---|
| Memory size [bit] | 896 |
| Memory type | EEPROM |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size [Byte] | 4 |
| Unique Identification Number (UID) [Byte] | 8 |
| RFID standard | ISO 15693 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...90 |
| Protection | IP 68 |
Tests / approvals
| Radio approval | ISO 15693 |
|---|
Mechanical data
| Weight [g] | 5 |
|---|---|
| Type of mounting | Press-fit housing; Installation in metal |
| Dimensions [mm] | Ø 10.3 / L = 4 |
| Materials | housing: PPA GF30; epoxy resin |
Remarks
| Pack quantity | 10 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80415-00 — 07.01.2020 —
