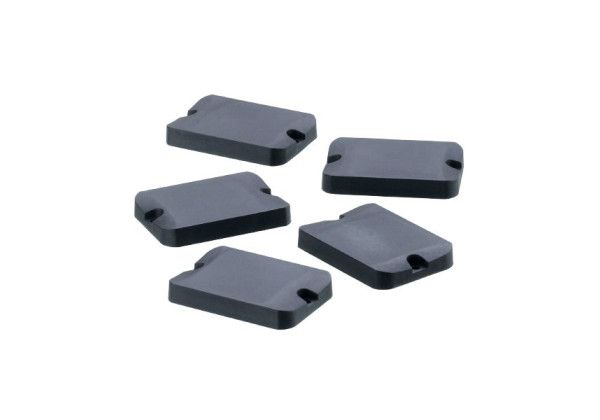

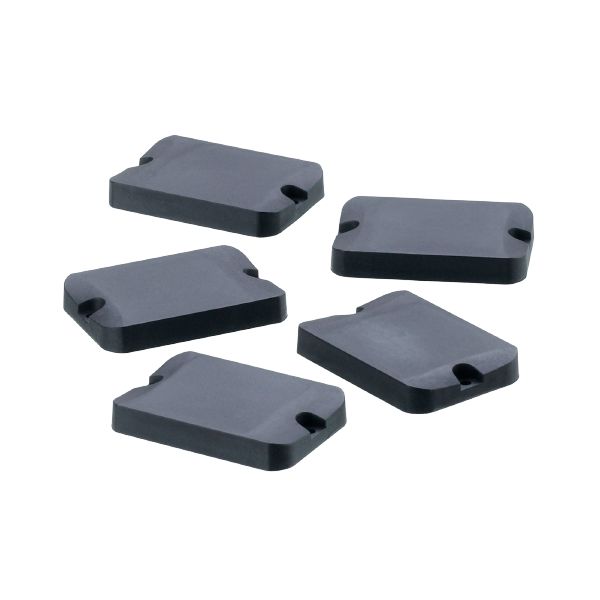

E80417 RFID tag ID-TAG/51x37x7,5
Brand: IFM Electronic
Code: E80417
- High temperature resistance and high protection rating
- Suitable for use on metal materials
Application
| Application | RFID coding of metal tanks |
|---|
Electrical data
| Operating frequency [MHz] | 866...928 |
|---|---|
| Memory size [bit] | 512 |
| Memory type | EEPROM |
| Chip type | Alien Higgs 3 |
| Tag identifier (TID) [Byte] | 64 |
| Electronic product code (EPC) | 96 bit |
| RFID standard | EPC Class1 GEN2/ISO 18000-6C |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...250 |
| Protection | IP 69K |
Mechanical data
| Weight [g] | 142.6 |
|---|---|
| Type of mounting | panel / surface |
| Dimensions [mm] | 51 x 36.3 x 7.5 |
| Materials | housing: Nylon / PP |
Remarks
| Pack quantity | 5 pcs. |
|---|
Other data
read distance (m)
| DTE80x | 1.1 |
| DTE90x | - |
| ANT860 / ANT960 | 4.8 |
| ANT820 / ANT920 | 2 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80417-00 — 30.03.2021 —
