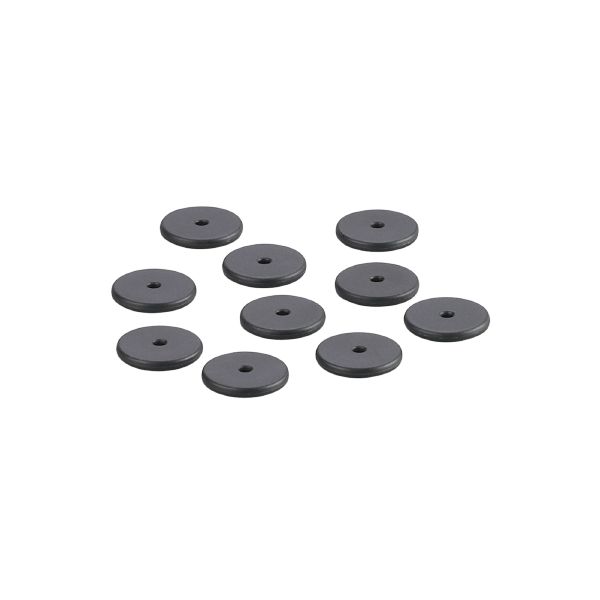

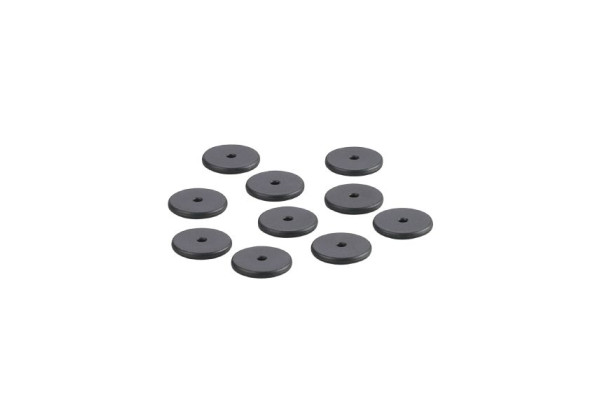

E80418 RFID tag ID-TAG/22 X 3.0 / 03

Code: E80418

Electrical data

Operating frequency [MHz]	13,56
Memory size [bit]	16000
Memory type	FRAM
Chip type	MB89R118C
Number of blocks	250
Block size [Byte]	8
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	unlimited

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-25...120
Protection	IP 68

Tests / approvals

Shock resistance

DIN IEC 68-2-27

40 g 18 ms

Vibration resistance

DIN IEC 68-2-6

10 g 10...2000 Hz

Radio approval

ISO 15693

Mechanical data

Weight [g]	1.7
Type of mounting	Installation on metal and non-metal materials; (screw fastening ; sticking to a surface ; In case of installation on metal, mount marked side on surface (marking: B or dot))
Dimensions [mm]	Ø 22 / L = 3
Materials	nylon

Remarks

Remarks
Pack quantity	10 pcs.

Other data

Reading distance when mounted on non-metal (mm)

ANT410 / DTI410	9
ANT411 / DTI411	11
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	6
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	16
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	15
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	20
ANT513 / DTI513 / DTC510	28
ANT515 / DTI515 / ANT516 / DTI516	7
ANT600 / DTI600	28

read distance when mounted on metal (mm)

ANT410 / DTI410	12
ANT411 / DTI411	8
ANT420 / DTI420 / DTM424 / DTI424 / DTM426	8
ANT421 / DTI421 / DTM425 / DTI425 / DTM427	19
ANT430 / DTI430 / DTM434 / DTI434 / DTM436	21
ANT431 / DTI431 / DTM435 / DTI435 / DTM437	26
ANT513 / DTI513 / DTC510	34
ANT515 / DTI515 / ANT516 / DTI516	17
ANT600 / DTI600	27
