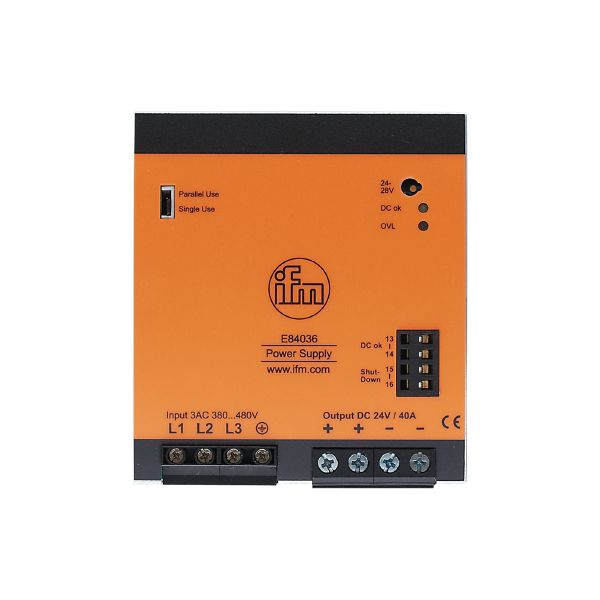

E84036 - ecomat200-PSU-3AC/24VDC-40A

Brand: IFM Electronic

Code: E84036

For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
High mains buffering time
Possibility to shut down the device via pulse pick-up
High power reserves

Electrical data

Frequency AC [Hz]

47...64

Operating voltage tolerance [%]

15...20

Nominal voltage AC [V]

< 400

Input voltage range AC [V]

380...480

Output voltage DC [V]

24...28

Protection class

I; (IEC 61140)

Overvoltage protection

yes; (< 32 DC)

Output voltage [V]

adjustable; output voltage to SELV, PELV

Max. output current at min. output voltage [A]

Max. output current at max. output voltage [A]

34.3

Max. output current peak at min. output voltage [A]

Max. output current peak at max. output voltage [A]

51.5

Output power (permanent) [W]

960

Output power (peak) [W]

1440

Note on output power (peak) [W]

if consumption > 4 s the power is automatically reduced to the output power

Power factor (nominal voltage 400 V AC / 50 Hz)

0.88

Note on power factor (nominal voltage 400 V AC / 50 Hz)

with symmetrical phase voltage

Power factor (nominal voltage 480 V AC / 50 Hz)

0.9

Note on power factor (nominal voltage 480 V AC / 50 Hz)

with symmetrical phase voltage

Power reserve [%]

Number of output circuits

Max. residual ripple [mV]

100

Switch-on peak current (nominal voltage 400 V AC / 60 Hz) [A]

4.5

Switch-on peak current (nominal voltage 480 V AC / 50 Hz) [A]

4.5

Inrush current limitation

yes

Efficiency (nominal voltage 400 V AC / 60 Hz) [%]

95.3

Efficiency (nominal voltage 480 V AC / 50 Hz) [%]

95.2

External input protection

≥ B-6 A / ≥ C-6 A

Derating [W/K]

24 (60...70 °C)

Mains buffering time (nominal voltage 400 V AC / 60 Hz) [ms]

Mains buffering time (nominal voltage 480 V AC / 50 Hz) [ms]

Input current (nominal voltage 400 V AC / 60 Hz) [A]

1.65

Input current (nominal voltage 480 V AC / 50 Hz) [A]

1.35

Power loss (nominal voltage 400 V AC / 60 Hz) [W]

47.3

Power loss (nominal voltage 480 V AC / 50 Hz) [W]

48.4

Back feeding protection [V]

Outputs

Short-circuit proof	yes
Overload protection	yes
Overload performance	output current constant
Type DC-OK signal	relay output
Reliability of the DC OK signal	60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A)

Operating conditions

Ambient temperature [°C]

-25...70

Note on ambient temperature

observe the free space for convection (see operating instructions)

Storage temperature [°C]

-40...85

Max. relative air humidity [%]

95; (IEC 60068-2-30)

Protection

IP 20; (EN 60529)

Pollution degree

2; (IEC 62103: conductive soiling not permitted)

Tests / approvals

EMC

EN 61000-6-1
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
EN 61000-3-2	Class A

Vibration resistance

IEC 60068-2-6

±1,6 mm 2...17,8 Hz / 1 g 17,8...500 Hz

Shock resistance

IEC 60068-2-27

15 g 6 ms / 10 g 11 ms

Power Factor Correction (PFC)

met

Mechanical data

Weight [g]	1754.5
Type of mounting	rail; (TH35 (EN 60715))
Dimensions [mm]	124 x 110 x 130.7
Materials	steel sheet

Displays / operating elements

Display

DC ok	1 x LED
overload	1 x LED

Remarks

Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage

Pack quantity

1 pcs.

Electrical connection

Connection	screw terminals:

Diagrams and graphs

block diagram

output characteristics

characteristic curve for degree of efficiency / power loss

characteristic line for derating

characteristic line for mains buffering time

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E84036-01 — 21.06.2023 —
