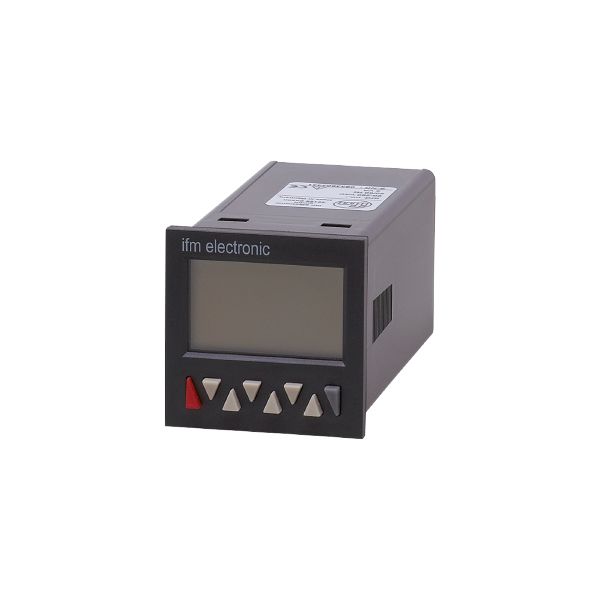

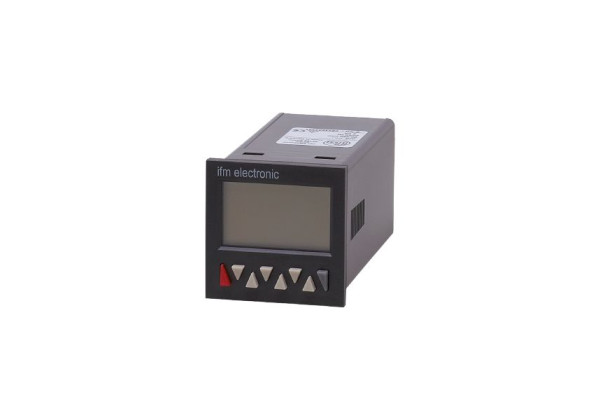

E89005 - ecomat200-COUNTER/210/LCD
Brand: IFM Electronic
Code: E89005
- Reliable monitoring of sensors with switching signals
- Clearly visible 2-line LCD display
- Easy setting of the parameters by means of pushbuttons on the front face
- Use as counter for pulse, frequency, time, or operating hours
- Two pulse inputs for adding and subtracting
Product characteristics
| Dimensions [mm] | 48 x 48 x 107 |
|---|
Application
| Application | preset counter with 2 presets |
|---|
Electrical data
| Nominal voltage AC [V] | 90...260 |
|---|---|
| Nominal frequency AC [Hz] | 50...60 |
| Auxiliary energy for sensors DC [V] | 24; (±15 %, 80 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...65 |
|---|---|
| Storage temperature [°C] | -25...75 |
| Max. relative air humidity [%] | 93 |
| Protection | IP 65; (on the front) |
| Protection rating terminals | IP 00 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
|
Mechanical data
| Weight [g] | 214.5 |
|---|---|
| Dimensions [mm] | 48 x 48 x 107 |
| Materials | PC black |
Displays / operating elements
| Display |
| ||
|---|---|---|---|
| Operating elements |
|
Electrical connection
| Connection | plug-in screw terminals: 7 x...2.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E89005-01 — 31.10.2012 —
