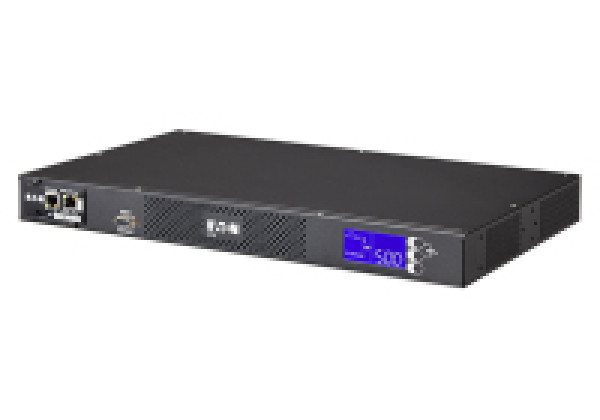

EATS16N Eaton ATS 16N uninterruptible power supply (UPS)

Code: EATS16N

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions
- LCD with metering and basic configuration capabilities

More information:

Weight & dimensions	Width	430 mm
	Depth	250 mm
	Height	43 mm
	Weight	3500 g
Design	Form factor	Rackmount
	Product colour	Black
	Rack capacity	1U
	Display	LED
	Certification	CE
Features	Input operation voltage (min)	208 V
	Input operation voltage (max)	240 V
	Input frequency	50/60 Hz
	Maximum current	16 A
	Response time	8 ms
	Web-based management	Yes
Ports & interfaces	AC outlet types	C13 coupler,C19 coupler
	Power plug	C20 coupler
	Number of output IEC jumpers	8
