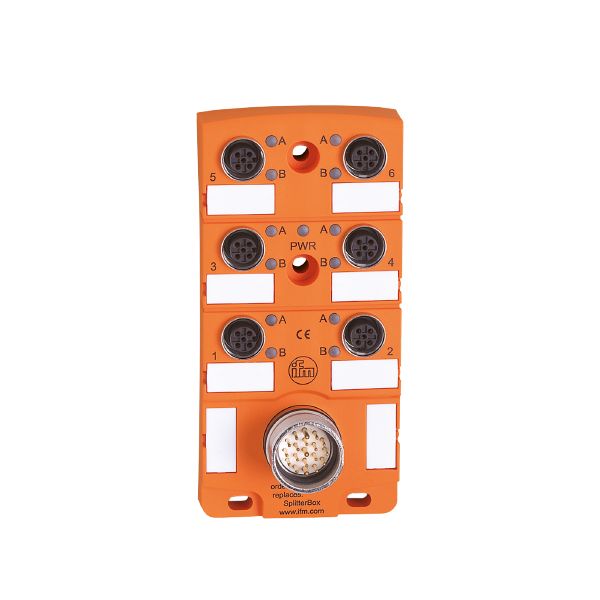

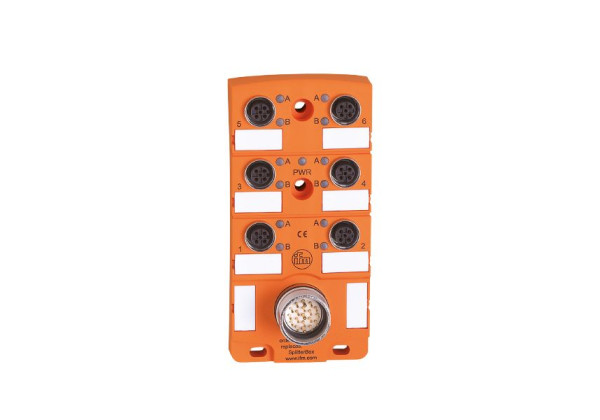

EBC008 - ecomat400-ZDO6H05DMSS0000-00STAK190MSS
Brand: IFM Electronic
Code: EBC008
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Robust housing for use in harsh industrial environments
- LEDs clearly visible even under bright lighting
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 10 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 256.5 |
|---|---|
| Materials | PA |
| Moulded-body material | PA |
| Number of ports splitter box | 6 |
| Connector type | M12 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Connection
| Connection | Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
Electrical connection - slot
| Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC008-00 — 05.11.2020 —
