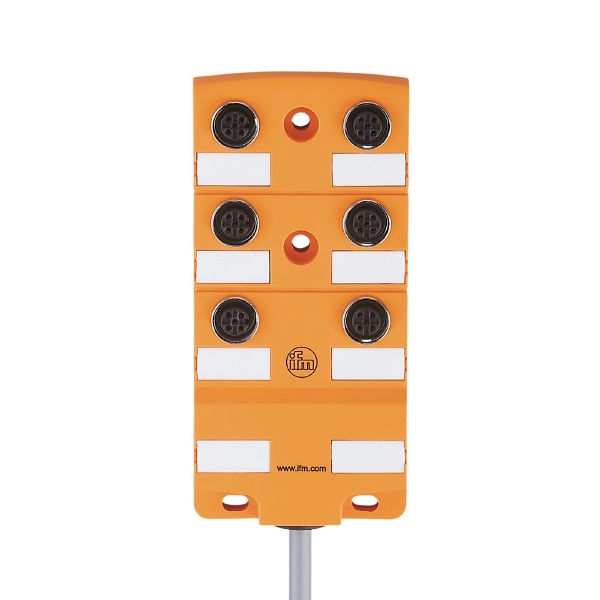

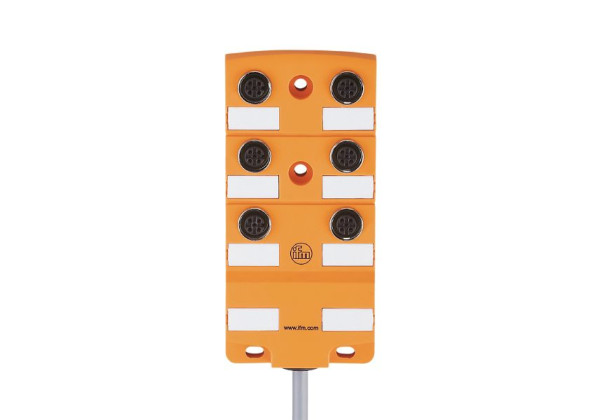

EBC043 - ecomat400-ZDO6H050MSS0010E15
Brand: IFM Electronic
Code: EBC043
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Robust housing for use in harsh industrial environments
- Clearly visible LEDs for indicating switching status and operation
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 30 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current load per module/slot [A] | 4; (per pin: 2; per group: 8) |
| Max. current load total [A] | 12 |
Operating conditions
| Ambient temperature [°C] | -25...40 |
|---|---|
| Ambient temperature (moving) [°C] | -5...60 |
| Protection | IP 67 |
Tests / approvals
| UL approval |
|
|---|
Mechanical data
| Weight [g] | 880 |
|---|---|
| Dimensions [mm] | 22 x 60 x 125 |
| Materials | PA |
| Moulded-body material | PA |
| Number of ports splitter box | 6 |
| Connector type | M12 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PVC, black, Ø 6.3 mm; 5 x 0.5 mm² |
Electrical connection - slot
| Connection | Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC043-01 — 05.11.2020 —
