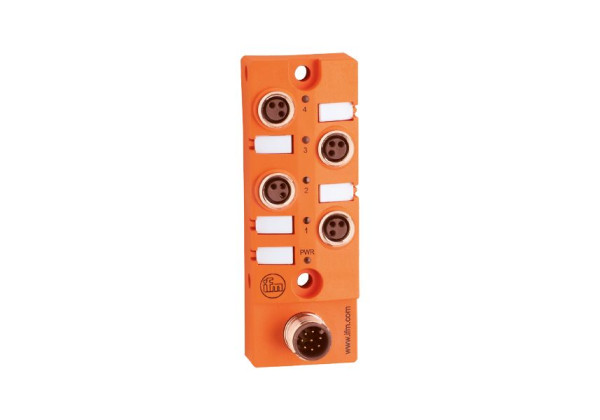

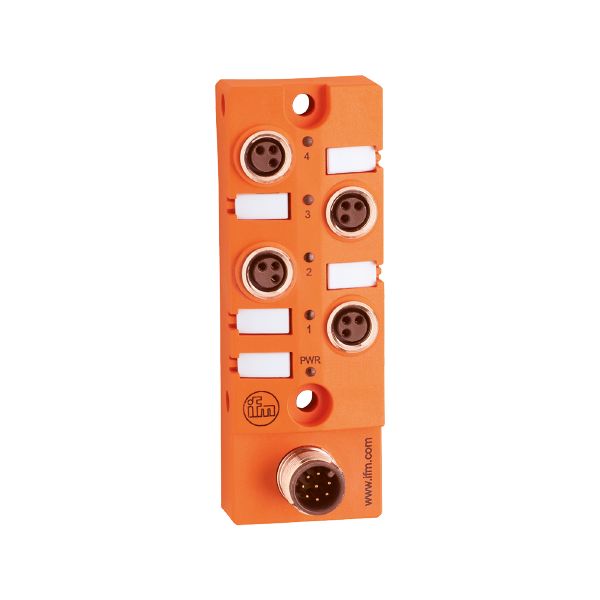

EBC050 - ecomat400-ZDO4F035MSS0000---STGH080MSS
Brand: IFM Electronic
Code: EBC050
- Compact housing for use where space is restricted
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Clearly visible LEDs for indicating switching status and operation
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Protection class | III |
| Max. current load per module/slot [A] | 2 |
| Max. current load total [A] | 2 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Ambient temperature (moving) [°C] | -5...60 |
| Protection | IP 67; IP 68; (1 m / 7 days) |
Mechanical data
| Weight [g] | 88.5 |
|---|---|
| Dimensions [mm] | 23.7 x 30 x 85.4 |
| Materials | PBT-GF20; brass nickel-plated |
| Moulded-body material | PBT-GF 20 / brass, nickel-plated |
| Number of ports splitter box | 4 |
| Connector type | M8 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Connection
| Connection | Connector: 1 x M12; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - slot
| Connector: 4 x M8; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC050-00 — 05.11.2020 —
